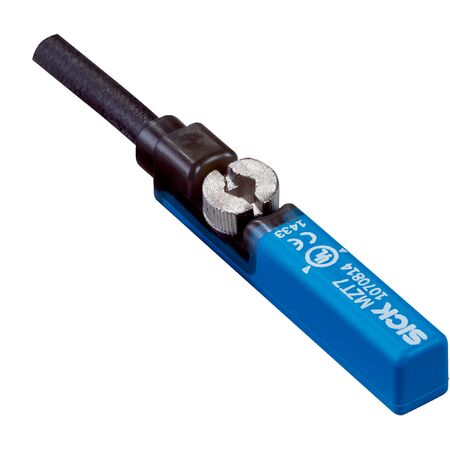

Cylinder Position Sensor MZT7-03VNS-KR0 | NPN Output | IP65 & IP67 Rated | by SICK
The MZT7-03VNS-KR0 cylinder position sensor is designed for precise position sensing in industrial automation. With a robust IP65 and IP67 enclosure rating, it withstands harsh environments while offering a high switching frequency of up to 1,000 Hz. Ideal for various cylinder types, this sensor features a normally open NPN output and reverse polarity protection, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Switching output: NPN
- Electrical wiring: DC 3-wire
- Enclosure rating: IP65 and IP67
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection included
- Status indicator LED included
- Connection: Cable with M8 3-pin connector, 0.5 m length
- Operating temperature range: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder types
- NPN switching output with normally open (NO) function
- High switching frequency up to 1,000 Hz
- Robust plastic housing with IP65 and IP67 enclosure rating
- Cable with M8 3-pin connector, 0.5 m length
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT7-03VNS-KR0 cylinder sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
