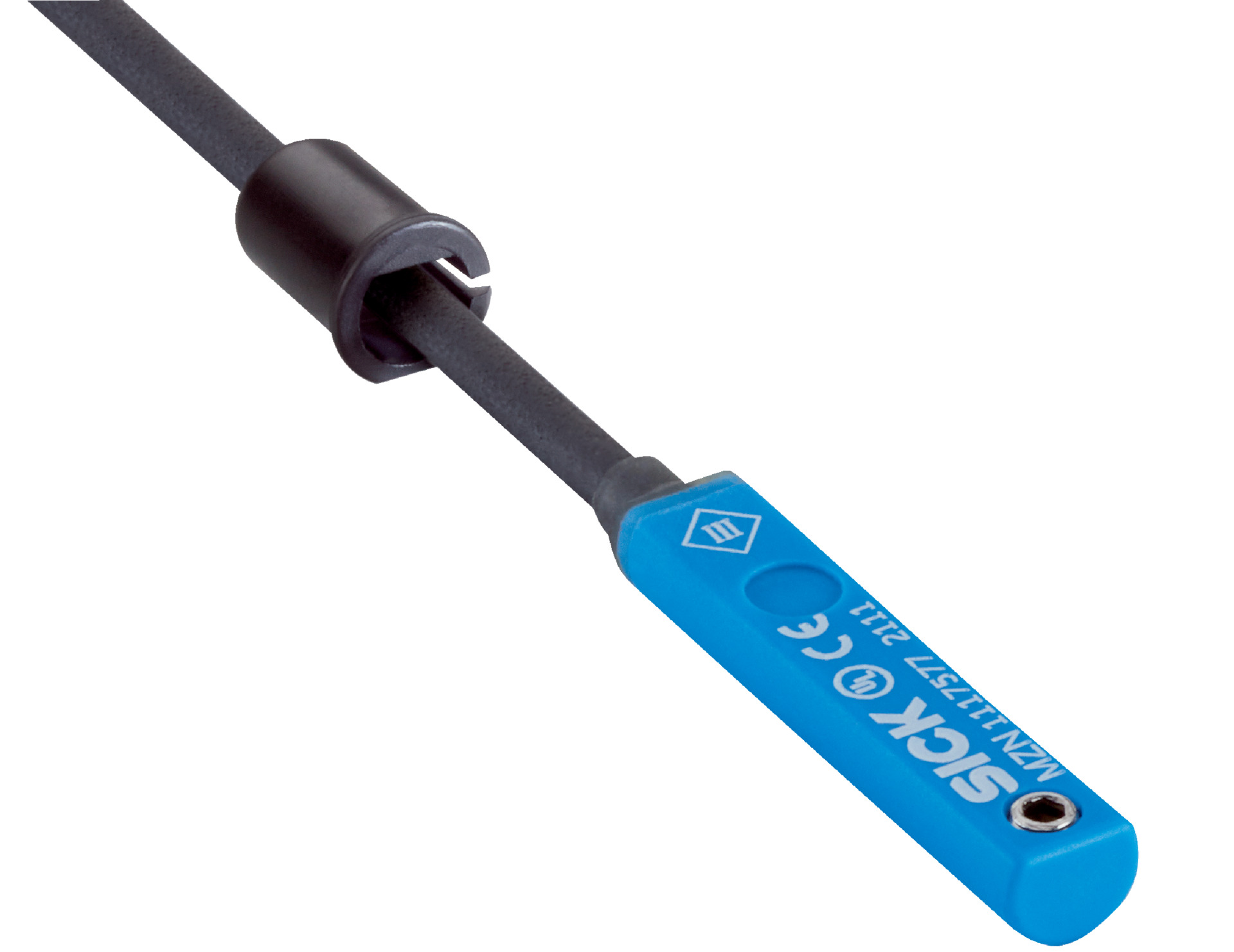

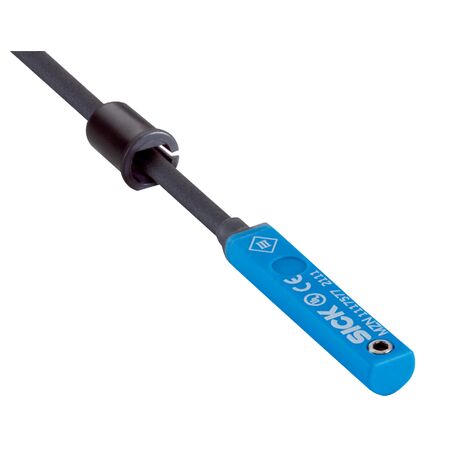

Cylinder Position Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Cylinder Position Sensor is designed for precise position sensing on IMI Norgren slot cylinders, featuring a PNP switching output and a high switching frequency of 1,000 Hz. With an IP67 enclosure rating, it’s perfect for industrial automation and pneumatic systems, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Compatible with round body cylinders using adapter
- Housing length: 29.5 mm
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –40 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliance: EN 60947-5-2
- Connection type: 3-wire cable, 2 m length, axial outlet
- Material: Plastic housing, PVC cable
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP67 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 10 mA without load
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 2 m length and axial outlet
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on IMI Norgren slot cylinders
- Use in pneumatic systems with round body cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZN-03VPS-KW0 cylinder sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
