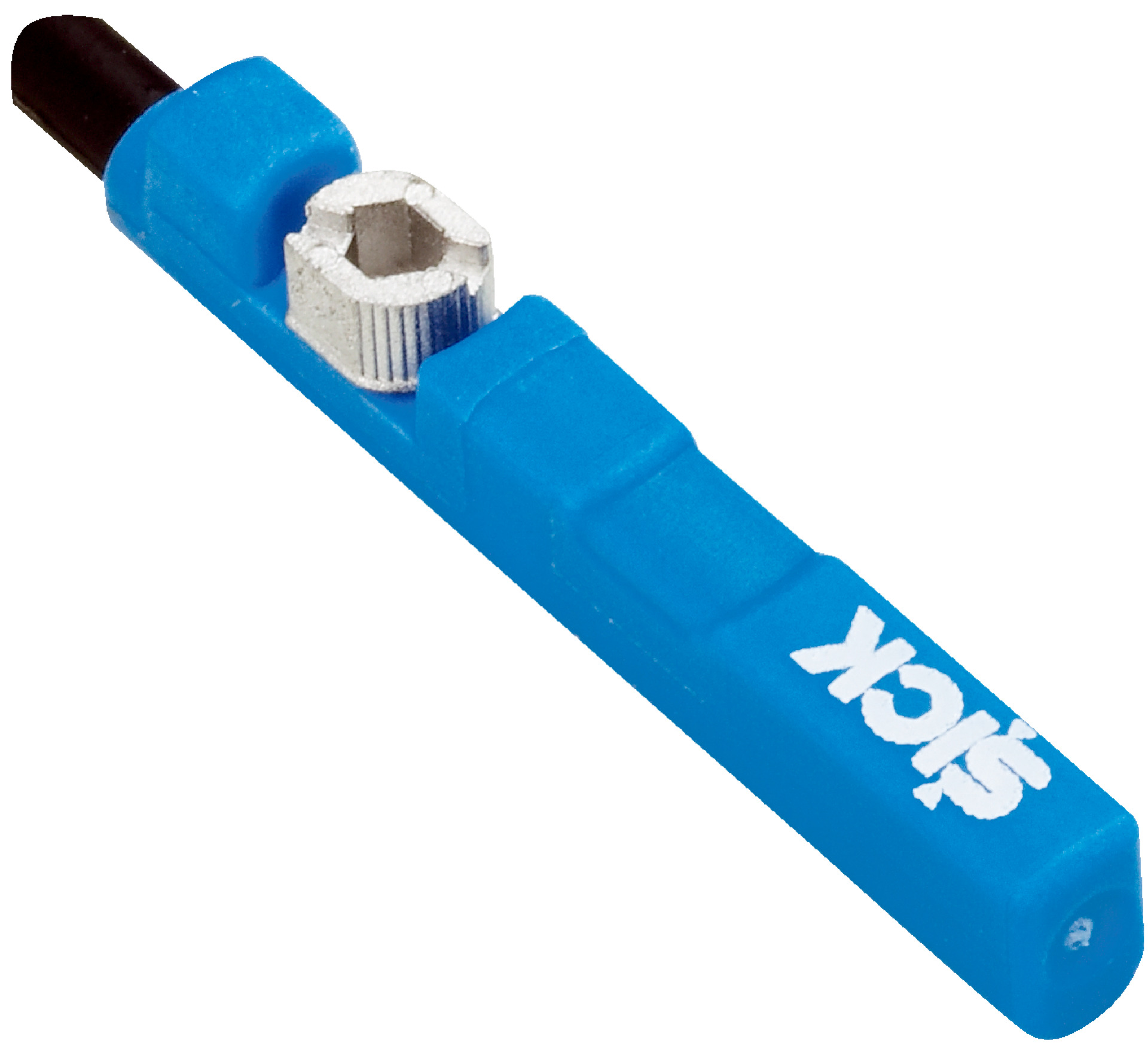

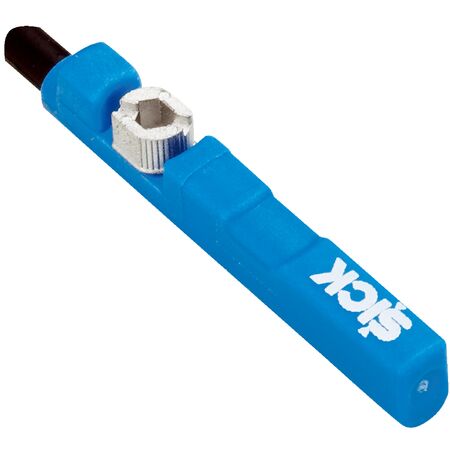

Cylinder Position Sensor MZC1-2Z2PS-KUB | PNP Output | IP68/IP69K Rated | 1000 Hz Switching Frequency | by SICK
The MZC1-2Z2PS-KUB cylinder position sensor is designed for precise position sensing in industrial automation. With a PNP switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic and hydraulic applications. Its robust IP68/IP69K rated enclosure protects against harsh environments, making it ideal for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 2.2 mT typical
- Overrun distance: 4 mm typical
- Hysteresis: ≤ 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Connection type: 3-wire cable, 5 m length, PUR material
- Protection class: III
- Enclosure rating: IP68 and IP69K
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -30 °C to +80 °C
- Status indicator: LED
- Reverse polarity, short-circuit, and power-up pulse protection included
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with various cylinder adapters
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- Enclosure rating IP68 and IP69K for harsh environments
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise switching output
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68/IP69K rated housing reduces environmental damage and extends product life
- Low power consumption of 8 mA without load minimizes energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC1-2Z2PS-KUB cylinder sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
