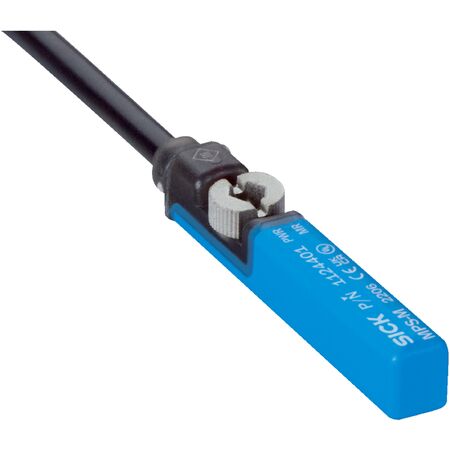

Cylinder Position Sensor | T-slot Design | 0-50mm Detection Zone | Analog Output & IO-Link | by SICK
The Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring a T-slot design and a detection zone from 0 mm to 50 mm. With an analog output of 0 V to 10 V and IO-Link communication, it’s perfect for pneumatic and hydraulic cylinder monitoring, ensuring reliable performance in factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Detection zone: 0 mm to 50 mm
- Measuring range: 50 mm
- Output function: Analog (0 V to 10 V), IO-Link V1.1 (COM3)
- Electrical wiring: DC 4-wire
- Supply voltage: 13 V DC to 30 V DC
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms typical
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Connection: 2 m axial cable, 4-wire, PUR jacket
- Material: Plastic housing (PA, strengthened)
- Dimensions (H x L x W): 15mm x 33mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder profiles
- Detection zone from 0 mm to 50 mm
- Analog output voltage 0 V to 10 V with IO-Link communication
- IP67 rated enclosure for dust and water protection
- Actuator diagnosis with status indicators and magnetic field strength monitoring
- Reverse polarity and short-circuit protection
- High shock and vibration resistance
- Teach-in functionality for easy setup
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration of IO-Link communication.
Applications
- Industrial automation for cylinder position detection
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise position feedback
- Actuator diagnosis and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise control and monitoring to reduce energy waste in automation systems
- Durable IP67 housing extends product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MPS-M50TUH0BA45CZZ Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
