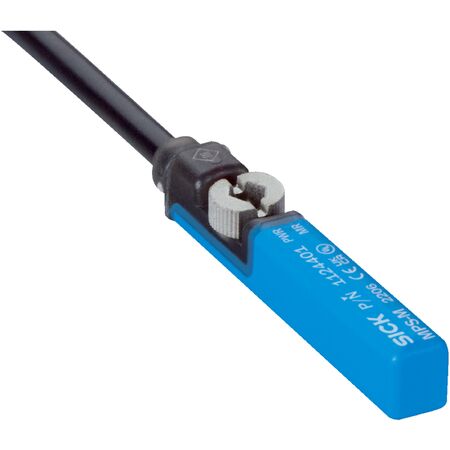

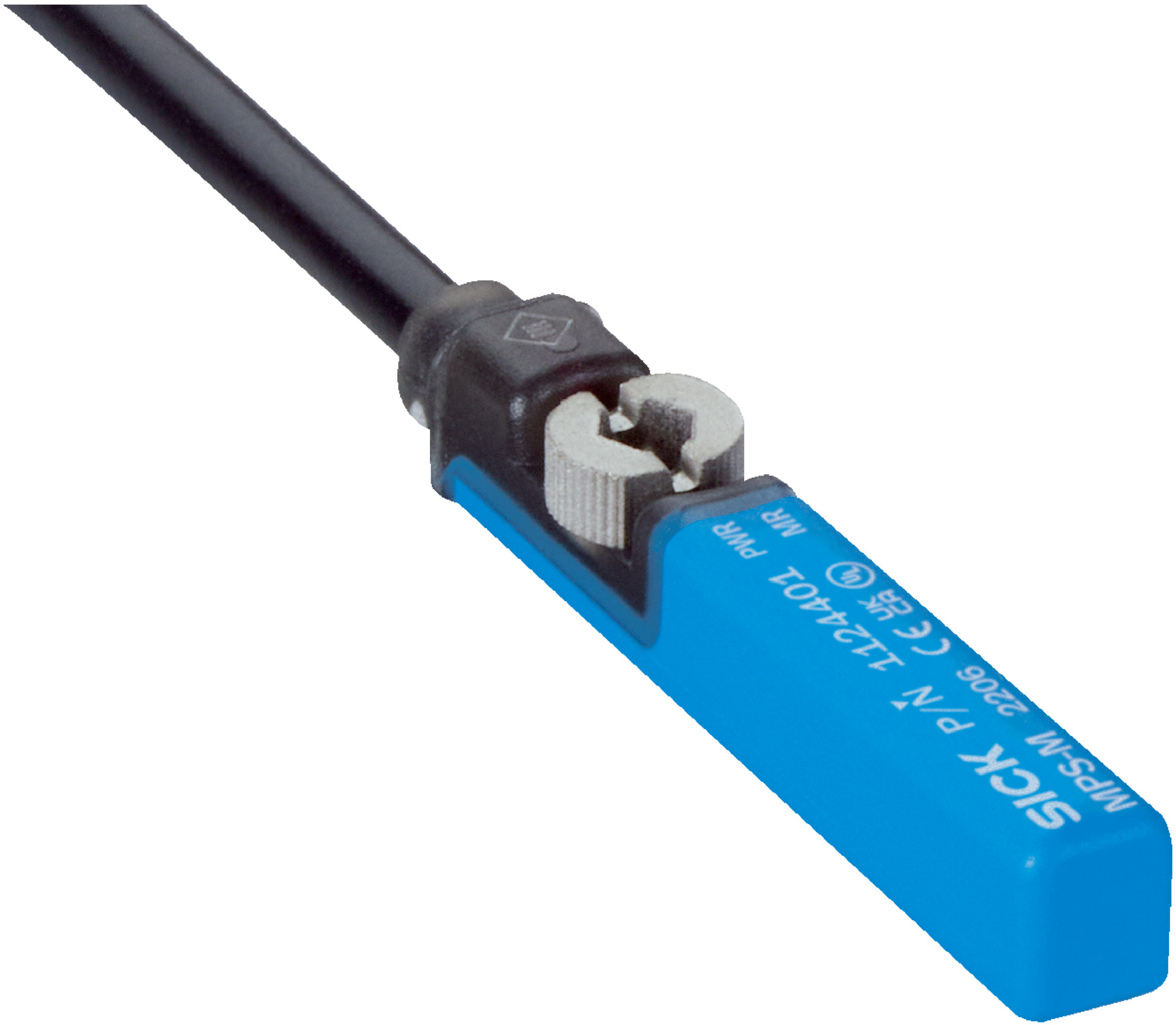

Cylinder Position Sensor | T-slot Design | 0-50mm Detection Zone | Analog Output & IO-Link | by SICK
The Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring a T-slot design and a detection zone from 0 mm to 50 mm. With an analog output of 0 V to 10 V and IO-Link communication, it ensures reliable actuator monitoring. Built for durability with an IP67 rated enclosure, this sensor is perfect for pneumatic and hydraulic applications, providing accurate feedback and diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Detection zone: 0 mm to 50 mm
- Measuring range: 50 mm
- Output function: Analog (0 V to 10 V), IO-Link V1.1 (COM3)
- Electrical wiring: DC 4-wire
- Supply voltage: 13 V DC to 30 V DC
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: 4-wire cable, 5 m, PUR jacket
- Material: Plastic housing (PA, strengthened), PUR cable
- Diagnostic functionality: Actuator diagnosis with status LEDs and teach-in
- Dimensions (H x L x W): 15mm x 33mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder profiles
- Detection zone from 0 mm to 50 mm
- Analog output voltage 0 V to 10 V with IO-Link communication
- IP67 rated enclosure for robust protection
- Actuator diagnosis with status indicators and teach-in function
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Reverse polarity and short-circuit protection
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and configuration of IO-Link communication.
Applications
- Industrial automation for cylinder position detection
- Profile, tie rod, round body, dovetail groove cylinders
- Pneumatic and hydraulic cylinder monitoring
- Actuator diagnosis and position feedback in manufacturing
