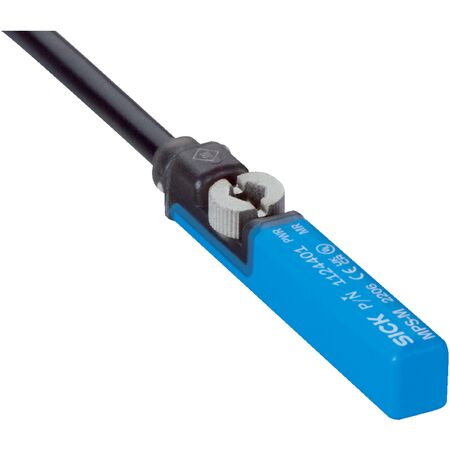

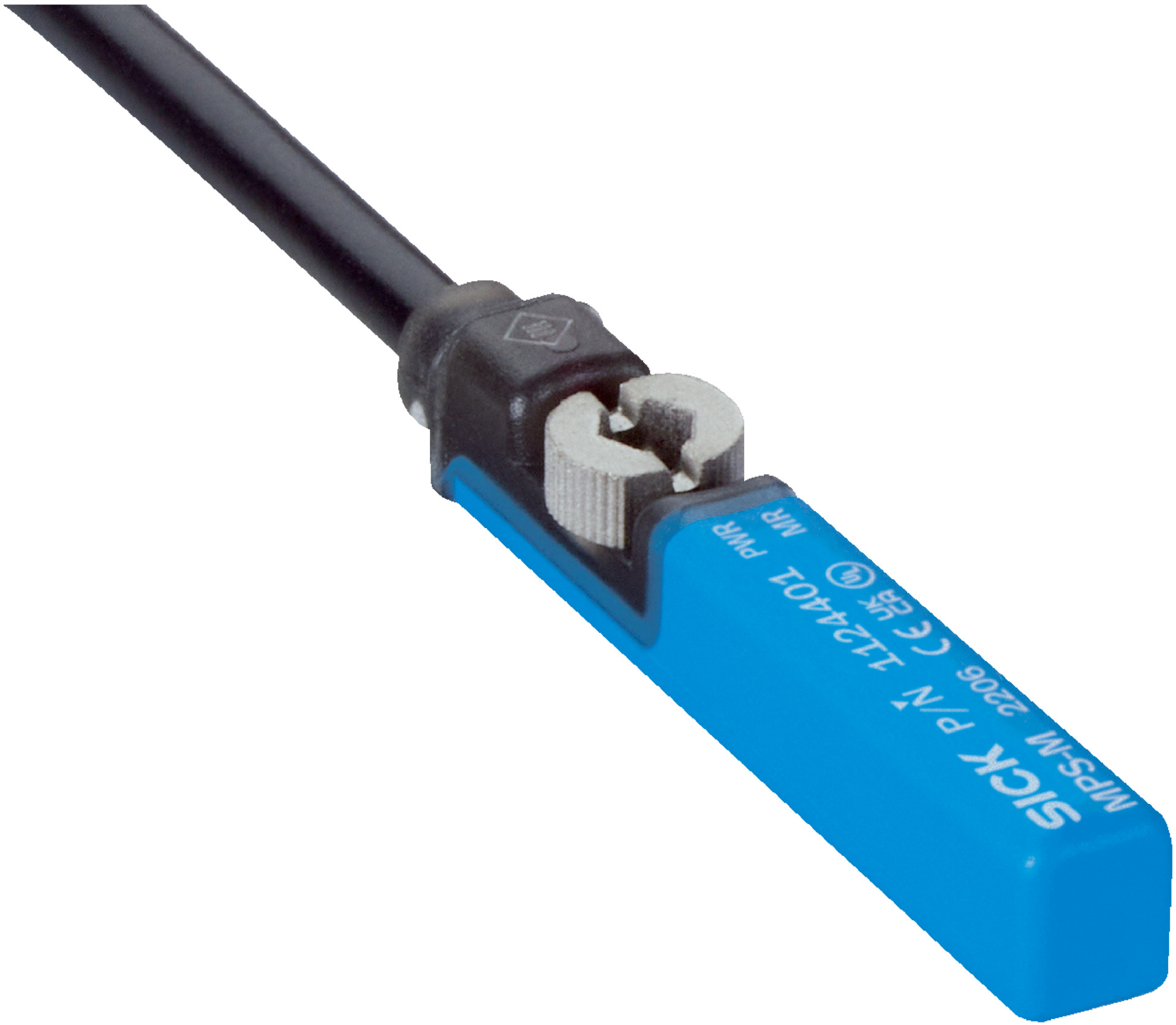

Cylinder Position Sensor | T-Slot Type | 0-50mm Detection Zone | IP67 Rated | by SICK
The Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring a T-slot design and a detection zone of 0 mm to 50 mm. With an analog output of 0 V to 10 V and IO-Link communication, it ensures reliable performance. Built for durability with an IP67 rating, this sensor is perfect for monitoring pneumatic and hydraulic cylinders in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Detection zone: 0 mm to 50 mm
- Measuring range: 50 mm
- Output function: Analog (0 V to 10 V), IO-Link V1.1 (COM3)
- Electrical wiring: DC 4-wire
- Supply voltage: 13 V DC to 30 V DC
- Min. load resistance: ≥ 10 kΩ
- Protection class: III
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.05 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection: Yes
- Enclosure rating: IP67
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: Cable with M12 4-pin connector, 0.3 m length
- Housing material: Plastic, PA strengthened
- Cable material: PUR
- Diagnostic functionality: Actuator diagnosis with status LEDs and teach-in
- Dimensions (H x L x W): 10mm x 33mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder profiles
- Detection zone from 0 mm to 50 mm
- Analog output voltage 0 V to 10 V with IO-Link communication
- IP67 rated enclosure for dust and water protection
- Actuator diagnosis with status indicators and teach-in function
- Robust plastic PA housing with PUR cable
- Short-circuit and reverse polarity protection
- High resolution of 0.01 mm and repeat accuracy of 0.05 mm
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for cylinder position detection
- Profile, tie rod, round body, dovetail groove cylinders
- Pneumatic and hydraulic cylinder monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (≤ 550 mW) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MPS-M50TUH03E45CZZ Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder monitoring applications.
