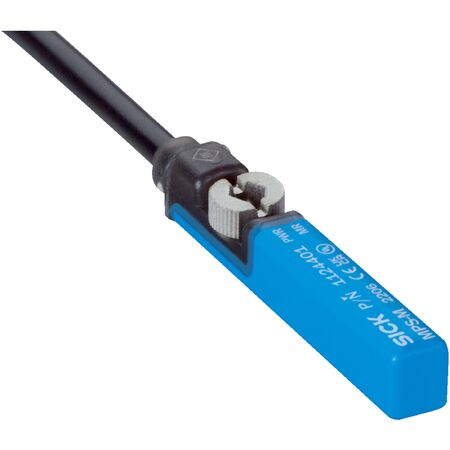

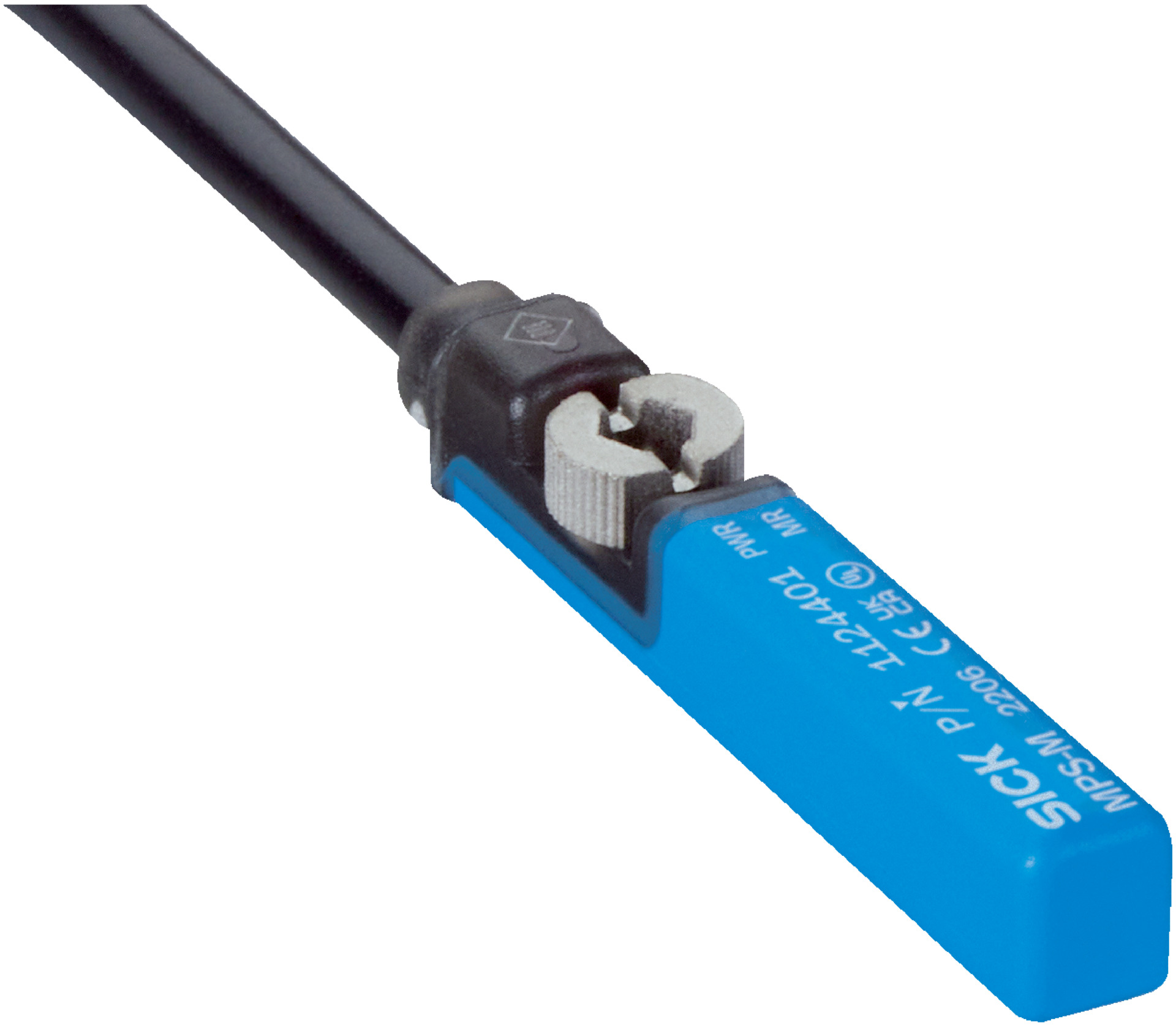

Cylinder Position Sensor | T-Slot Type | 50 mm Measuring Range | IP67 Rated | by SICK
The Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring a T-slot design and a 50 mm measuring range. With an analog output of 0 V to 10 V and IO-Link communication, it ensures reliable performance in harsh environments, thanks to its IP67 rating. Ideal for actuator diagnosis and monitoring, this sensor is built to withstand shock and vibration, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Detection zone: 0 mm to 50 mm
- Measuring range: 50 mm
- Output function: Analog (0 V to 10 V), IO-Link V1.1 (COM3)
- Electrical wiring: DC 4-wire
- Supply voltage: 13 V DC to 30 V DC
- Min. load resistance: ≥ 10 kΩ
- Protection class: III
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.05 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection: Yes
- Enclosure rating: IP67
- Operating temperature: -20 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Connection: M8, 4-pin cable with knurled nut, 0.5 m length
- Housing material: Plastic, PA strengthened
- Cable material: PUR
- Diagnostic features: Actuator diagnosis, status LEDs
- Dimensions (H x L x W): 15mm x 33mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type with 50 mm measuring range
- Analog output 0 V to 10 V and IO-Link communication
- IP67 rated enclosure for dust and water protection
- Diagnostic functionality including actuator diagnosis
- High resolution of 0.01 mm and repeat accuracy of 0.05 mm
- Short-circuit and reverse polarity protection
- Status and measuring range LEDs for easy monitoring
- Robust against shock (30 g) and vibration (10-55 Hz)
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and IO-Link communication protocols.
Applications
- Industrial automation for cylinder position detection
- Profile, tie rod, round body, dovetail groove cylinders
- Use in harsh environments requiring IP67 protection
- Actuator diagnosis and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 550 mW) supports energy efficiency
- Robust against environmental factors reducing failure rates
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-M50TUH05D45CZZ sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
