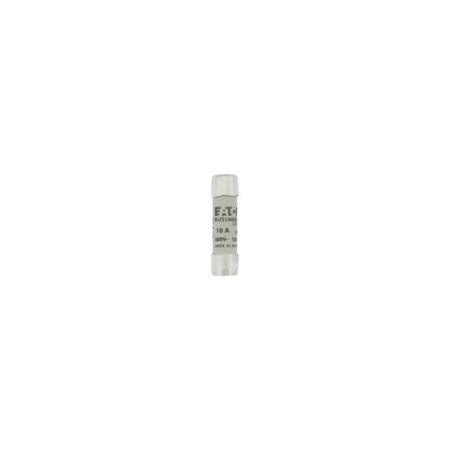

Cylindrical Fuse 10A 500V AC | 120 kA Breaking Capacity | gG Utilization Category | 10 x 38 mm by Eaton
Cylindrical fuse rated at 10A and 500V AC, featuring a high breaking capacity of 120 kA—ideal for low voltage electrical circuit protection. Built for industrial and commercial applications, with a compact 10 x 38 mm design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 10A 500V AC | 120 kA Breaking Capacity | gG Utilization Category | 10 x 38 mm by Eaton
Brand: Eaton
SKU: C10G10
Alternatively Known As: 10x38mm Fuse, Cylindrical Fuse 10A, 500V AC Fuse, gG Fuse 10A, Low Voltage Fuse
Technical Specifications
- Amperage Rating: 10 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 10 mm diameter x 38 mm length
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS Compliant
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.0082 kg
Key Features
- Rated at 10 Amps and 500 Volts AC
- High breaking capacity of 120 kA for enhanced safety
- Class gG/gL utilization category suitable for cable and equipment protection
- Compact 10 x 38 mm cylindrical/ferrule design
- Compatible with CHM Modular fuse holders
- CE Marked, GoST-R, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse holder compatibility.
Applications
- Low voltage electrical circuit protection
- Cable and equipment protection in industrial and commercial electrical systems
- Use with CHM Modular fuse holders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long service life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Eaton Cylindrical Fuse 10 x 38 10A GG 500V AC is available now for immediate purchase. Ideal for low voltage electrical circuit protection in industrial and commercial applications.
