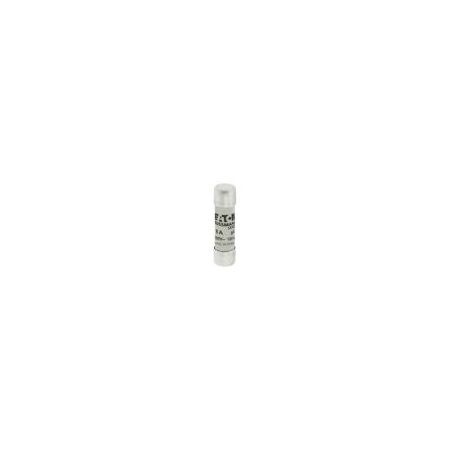

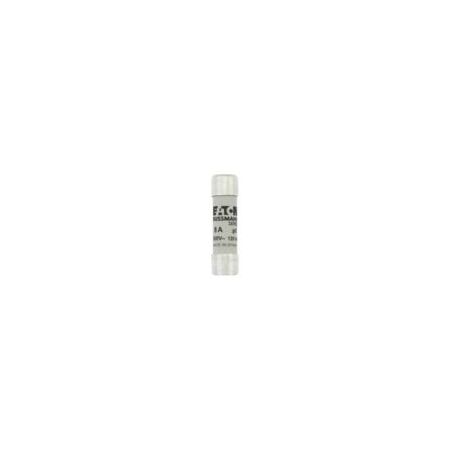

Cylindrical Fuse 10 x 38 mm | 8A Rating | 500V AC | 120 kA Breaking Capacity by Eaton
Cylindrical fuse rated at 8A and 500V AC—ideal for low voltage electrical circuit protection. Built for industrial and commercial applications, with a 120 kA breaking capacity for high fault current interruption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 10 x 38 mm | 8A Rating | 500V AC | 120 kA Breaking Capacity by Eaton
Brand: Eaton
SKU: C10G8
Alternatively Known As: 10x38 Fuse, Cylindrical Fuse 8A, 500V AC Fuse, gG Fuse, Ferrule Fuse
Technical Specifications
- Amperage Rating: 8 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 10 mm x 10 mm x 38 mm
- Weight: 8.2 g
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS Compliant
- Suitable for CHM Modular fuse holder
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.0082 kg
Key Features
- Rated at 8 Amps and 500 Volts AC
- 120 kA breaking capacity for high fault current interruption
- Class gG/gL utilization category for cable and equipment protection
- Compact 10 x 38 mm cylindrical/ferrule design
- Compatible with CHM Modular fuse holders
- Without indicator
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical circuit protection
- Cable and equipment protection in industrial and commercial electrical systems
- Use with CHM Modular fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Cylindrical Fuse 10 x 38 8A GG 500V AC is available for immediate purchase, ideal for electrical circuit protection in industrial and commercial applications.
