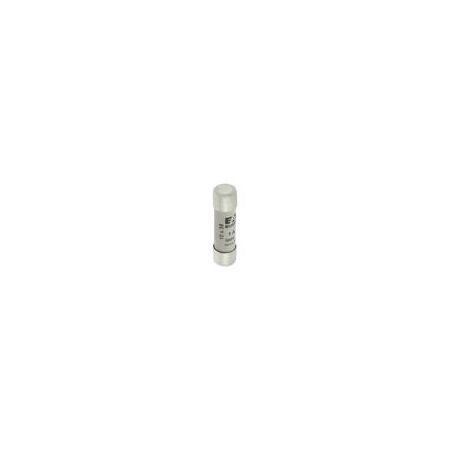

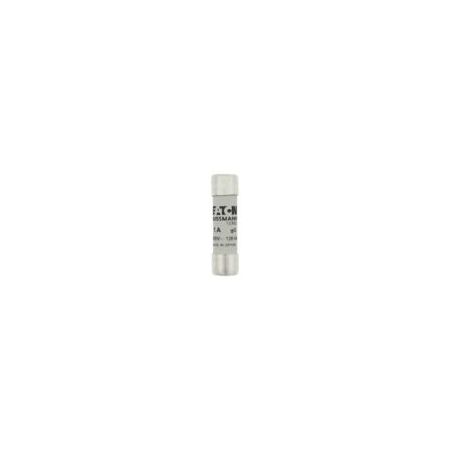

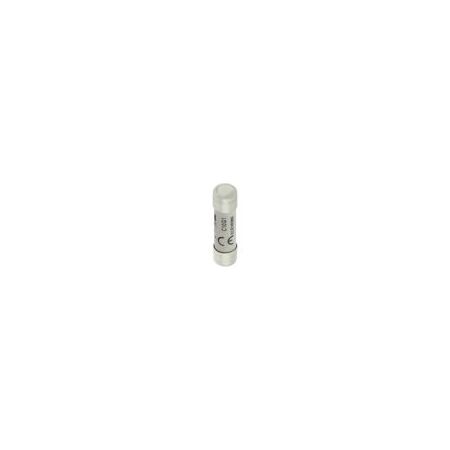

Cylindrical Fuse 10 x 38mm | 1A Rating | 500V AC | 120 kA Breaking Capacity by Eaton
Cylindrical fuse rated at 1A and 500V AC—ideal for low voltage electrical circuit protection. Built for residential, commercial, and industrial applications, with a high breaking capacity of 120 kA for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 10 x 38mm | 1A Rating | 500V AC | 120 kA Breaking Capacity by Eaton
Brand: Eaton
SKU: C10G1
Alternatively Known As: 10x38mm cylindrical fuse, 1A gG fuse, 500V AC fuse, low voltage fuse, Eaton Bussmann fuse
Technical Specifications
- Amperage Rating: 1 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 10 mm x 10 mm x 38 mm
- Weight: 8.2 g
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS Compliant
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.0082 kg
Key Features
- Rated at 1 Amp, 500 Volts AC
- High breaking capacity of 120 kA
- Class gG/gL utilization category for cable and equipment protection
- Compatible with CHM Modular fuse holders
- Complies with IEC 60269 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse holder compatibility.
Applications
- Electrical circuit protection in residential, commercial, and industrial low voltage systems
- Protection of cables and equipment in electrical installations
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Eaton Cylindrical Fuse 10 x 38 1A GG 500V AC is available for immediate purchase, ideal for low voltage electrical circuit protection applications.
