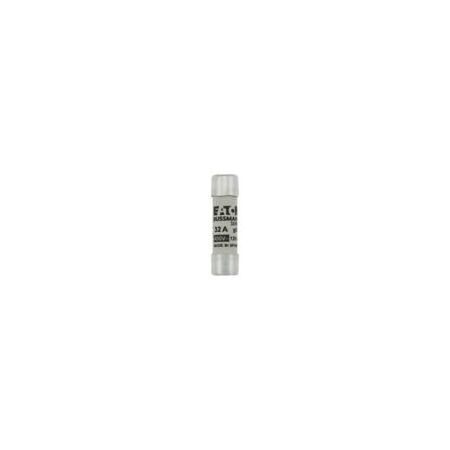

Cylindrical Fuse 10 x 38mm | 32A Rating | 400V AC | High Breaking Capacity by Eaton
Cylindrical fuse rated at 32A and 400V AC—ideal for low voltage electrical circuit protection. Built for industrial and commercial use, with a high breaking capacity of 120 kA and compliance with IEC 60269 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 10 x 38mm | 32A Rating | 400V AC | High Breaking Capacity by Eaton
Brand: Eaton
SKU: C10G32
Alternatively Known As: 10x38mm fuse, cylindrical fuse 32A, 400V fuse, gG fuse, low voltage fuse
Technical Specifications
- Amperage Rating: 32 A
- Voltage Rating: 400 V AC
- Breaking Capacity: 120 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 10 mm diameter x 38 mm length
- Compatible with CHM Modular fuse holders
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.0082 kg
Key Features
- Rated at 32 Amps and 400 Volts AC
- High breaking capacity of 120 kA
- Class C gG/gL utilization category for cable and equipment protection
- Compact 10 x 38 mm cylindrical/ferrule design
- Complies with IEC 60269 standards
- CE Marked, GoST-R, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical circuit protection
- Cable and equipment protection in industrial and commercial settings
- Use with CHM modular fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long service life reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Cylindrical Fuse 10 x 38 32A GG 400V AC is available for immediate purchase, ideal for low voltage electrical protection in industrial and commercial applications.
