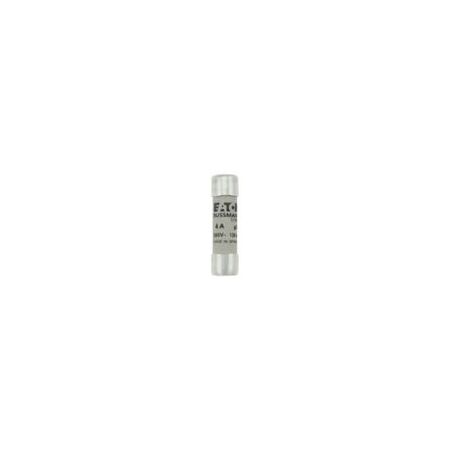

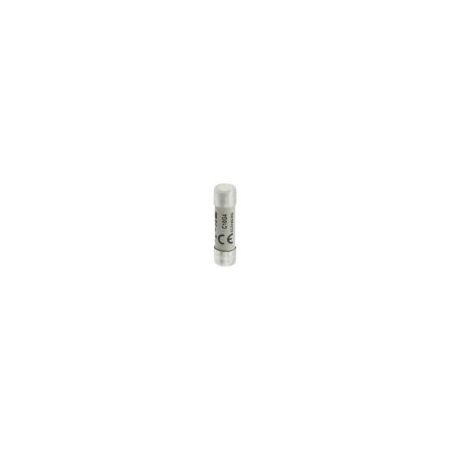

Cylindrical Fuse 10 x 38mm | 4A Rating | 500V AC | 120 kA Breaking Capacity by Eaton
Cylindrical fuse rated at 4A and 500V AC, featuring a high breaking capacity of 120 kA—ideal for low voltage electrical circuit protection. Built for industrial and commercial applications, it ensures safety and compliance with IEC 60269 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 10 x 38mm | 4A Rating | 500V AC | 120 kA Breaking Capacity by Eaton
Brand: Eaton
SKU: C10G4
Alternatively Known As: 10x38mm Fuse, Cylindrical Fuse 4A, 500V AC Fuse, gG Fuse, Low Voltage Fuse
Technical Specifications
- Amperage Rating: 4 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 10 mm diameter x 38 mm length
- Compatible with CHM Modular fuse holders
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.0082 kg
Key Features
- Rated at 4 Amps and 500 Volts AC
- High breaking capacity of 120 kA for enhanced safety
- Class gG/gL utilization category suitable for cable and equipment protection
- Complies with IEC 60269 standards
- CE Marked, GoST-R, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse holder compatibility.
Applications
- Low voltage electrical circuit protection
- Cable and equipment protection in industrial and commercial electrical systems
- Use with CHM Modular fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long service life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Eaton Cylindrical Fuse 10 x 38 4A GG 500V AC is available for immediate purchase, ideal for low voltage electrical protection in industrial and commercial applications.
