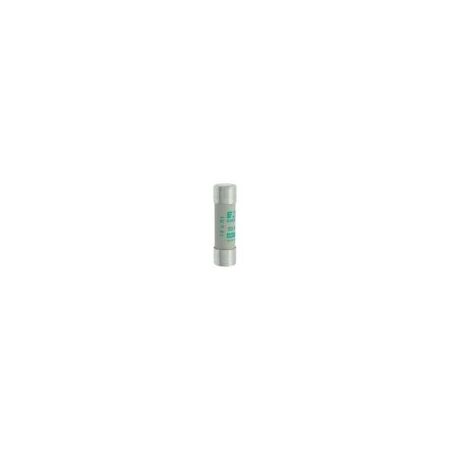

Cylindrical Fuse 14 x 51 | 50A Rating | 400V AC | High Breaking Capacity by Eaton
Cylindrical fuse rated at 50A and 400V AC—ideal for low voltage electrical protection in industrial and commercial switchgear. Built for safety with a high breaking capacity of 120 kA and a compact 14 x 51 mm design, ensuring reliable circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 14 x 51 | 50A Rating | 400V AC | High Breaking Capacity by Eaton
Brand: Eaton
SKU: C14M50
Alternatively Known As: 14x51 Fuse, Cylindrical Fuse 50A, Low Voltage Fuse, aM Fuse, Modular Fuse
Technical Specifications
- Amperage Rating: 50 A
- Voltage Rating: 400 V AC
- Breaking Capacity: 120 kA
- Utilization Category: aM (switchgear protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 14 x 51 mm
- Weight: 20.5 g
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS Compliant
- Suitable for CH14 Modular fuse holder
- Dimensions (H x L x W): 14mm x 51mm x 14mm
- Weight: 0.021 kg
Key Features
- Rated at 50 Amps and 400 Volts AC
- High breaking capacity of 120 kA for enhanced safety
- Class aM utilization category for motor and switchgear protection
- Compact 14 x 51 mm cylindrical/ferrule design
- CE Marked, GoST-R, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical protection in industrial and commercial switchgear
- Compatible with CH14 Modular fuse holders for circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long service life reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Cylindrical Fuse 14 x 51 50A aM 400V AC is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
