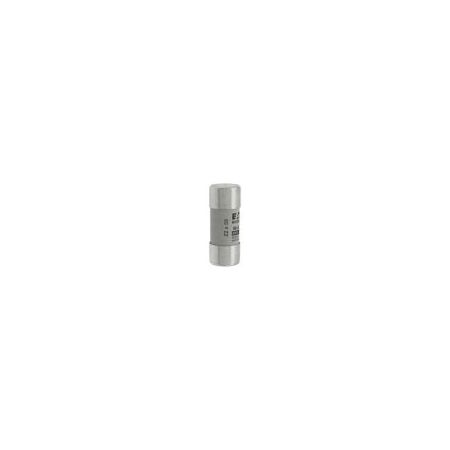

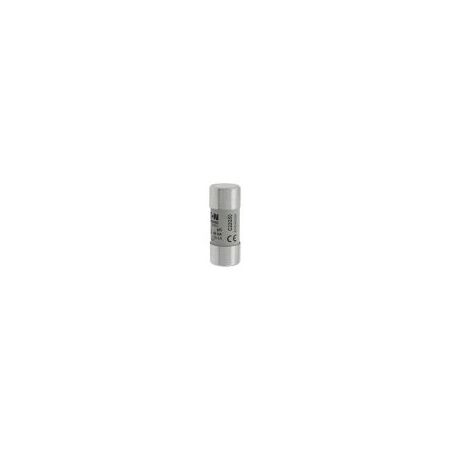

Cylindrical Fuse 22 x 58mm | 50A Rating | 690V AC | 80 kA Breaking Capacity by Eaton
Cylindrical fuse rated at 50A and 690V AC—ideal for low voltage electrical circuit protection. Built for industrial and commercial applications, with an 80 kA breaking capacity for high fault current protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 22 x 58mm | 50A Rating | 690V AC | 80 kA Breaking Capacity by Eaton
Brand: Eaton
SKU: C22G50
Alternatively Known As: 22x58mm cylindrical fuse, 50 amp fuse, 690V AC fuse, gG fuse, gL fuse, low voltage fuse
Technical Specifications
- Amperage Rating: 50 A
- Voltage Rating: 690 V AC
- Breaking Capacity: 80 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating: Max 62 Hz
- Compatible with CH22 Modular fuse holders
- Certifications: IEC 60269
- Compliances: CE Marked, GoST-R, RoHS Compliant
- Dimensions (H x L x W): 22.2mm x 58mm x 22.2mm
- Weight: 0.0541 kg
Key Features
- Rated at 690 Volts AC and 50 Amps
- 80 kA breaking capacity for high fault current protection
- Class gG/gL utilization category suitable for cable and equipment protection
- Complies with IEC 60269 standards
- CE Marked, GoST-R, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical circuit protection
- Cable and equipment protection in industrial and commercial electrical systems
- Use with CH22 Modular fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long service life reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton Cylindrical Fuse 22 x 58 50A GG 690V AC is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
