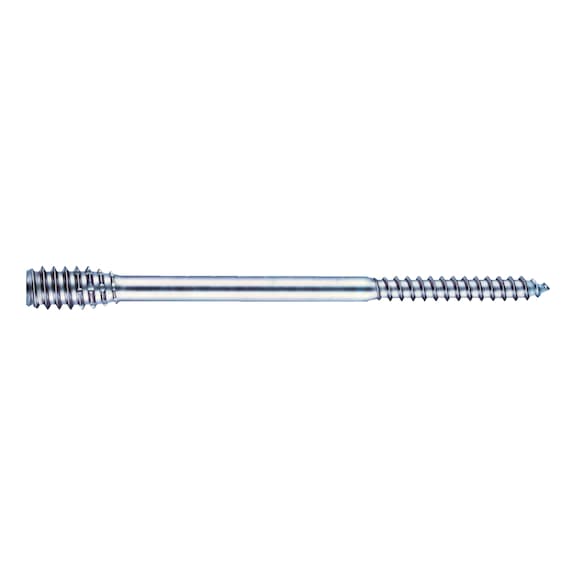

D-anchor Timber Screw | Galvanised Steel | Tension-Free Installation | 200 PCS | by Wurth
D-anchor timber screws are designed for reliable timber fixing, featuring a tension-free spaced installation for easy assembly. Made from galvanised steel for corrosion resistance, these screws are perfect for window frames, door casings, and dry ridge applications. Ideal for professional tradespeople, they ensure high load-bearing capacity without the need for readjustments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: D-anchor Timber Screw | Galvanised Steel | Tension-Free Installation | 200 PCS | by Wurth
Brand: Wurth
SKU: 233163100
Alternatively Known As: D-anchor screw, timber fixing screw, galvanised wood screw, dry ridge screw, window frame screw, door casing screw

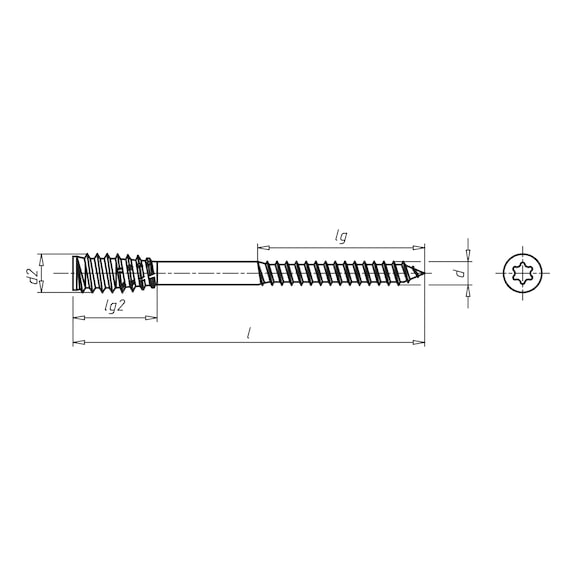

Technical Specifications
- Nominal diameter: 6 mm
- Head thread diameter: 10.0 mm
- Length: 100 mm
- Head type: Threaded head
- Head diameter: 10.0 mm
- Head height: 22.0 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread form: Single start thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread length: 42.0 mm
- Head thread length: 22.0 mm
- Core diameter: 4.2 mm
- Core diameter of head thread: 7.5 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Max. screw-in angle: 90 degrees
- Min. screw-in angle: 45 degrees
- Suitable materials: Board ply wood (BSP), dowel, wood, derived timber product, softwood
- RoHS-compliant: Yes
- Dimensions (H x L x W): 22mm x 100mm x 10mm
- Weight: 1.2 kg
Key Features
- Tension-free spaced installation anchor

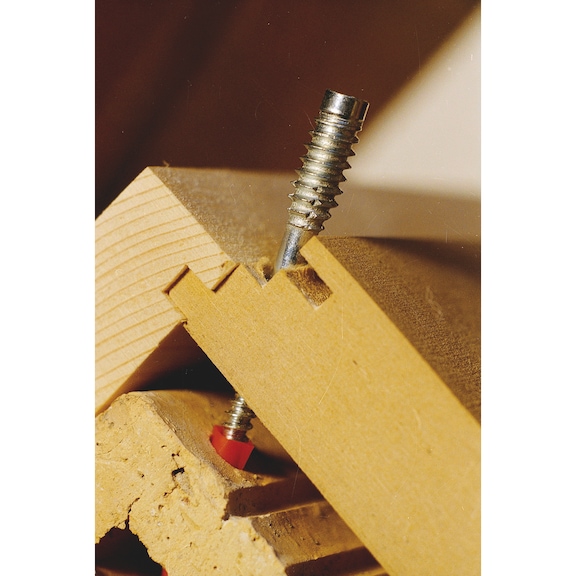

- Suitable for dry ridge fixing and attaching window frames, door casings, or substructures
- Made of galvanised steel, blue passivated for corrosion resistance
- Time-saving with no need for time-consuming equalisation using spacing blocks
- Used as part of a system with an AW anchor cover cap
- Caps lie flat against the surface even when mounted at an angle up to 20°
- Conical transition in the lower part of the head thread
- Frictionless screwing prevents pulling the slat even if inserted off-centre
- Higher load-bearing capacity and requires no subsequent readjustments
- Can be combined with Jamo® screws when assembling substructures
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct fixing and load-bearing performance.
Applications
- Spacing assembly
- Windows
- Kitchen
- Dry roof ridge
- Door
- Substructure
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel provides long-lasting corrosion resistance, reducing the need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Wurth offers a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth D-anchor Timber Screw 200 PCS is available for immediate purchase, ideal for timber fixing applications in construction and renovation projects.
