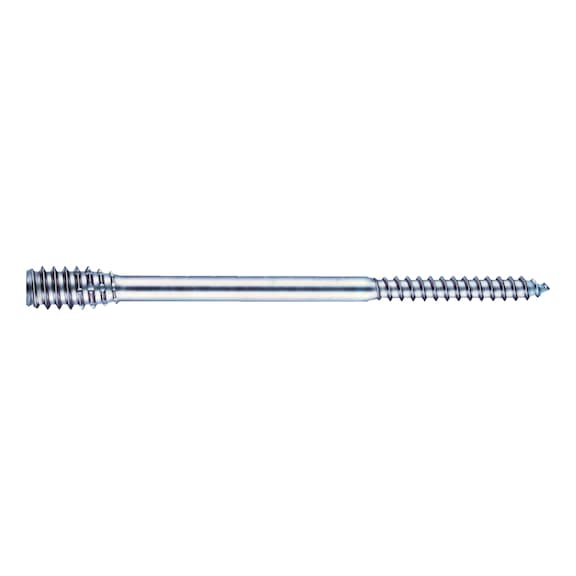

D-anchor Timber Screw | Tension-Free Installation | Galvanised Steel | 200 PCS | by Wurth
D-anchor timber screws are designed for tension-free spaced installation, making them ideal for fixing windows, doors, and dry roof ridges. Made from durable galvanised steel, these screws ensure a higher load-bearing capacity and require no subsequent readjustments, perfect for professional tradespeople and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: D-anchor Timber Screw | Tension-Free Installation | Galvanised Steel | 200 PCS | by Wurth
Brand: Wurth
SKU: 23316360
Alternatively Known As: D-anchor screw, timber fixing screw, wood screw anchor, dry ridge screw, window frame screw, door casing screw
Technical Specifications
- Nominal diameter: 6 mm
- Head thread diameter: 10.0 mm
- Length: 60 mm
- Head type: Threaded head
- Head diameter: 10.0 mm
- Head height: 22.0 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread form: Single start thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread length: 36.0 mm
- Head thread length: 22.0 mm
- Core diameter: 4.2 mm
- Core diameter of head thread: 7.5 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 45 degrees
- Suitable materials: Board ply wood (BSP), dowel, wood, derived timber product, softwood
- RoHS-compliant: Yes
- Dimensions (H x L x W): 22mm x 60mm x 10mm
- Weight: 0.2 kg
Key Features
- Tension-free spaced installation anchor
- Suitable for dry ridge fixing and attaching window frames, door casings, or substructures
- Made of galvanised steel, blue passivated
- Time-saving with no need for time-consuming equalisation using spacing blocks
- Used as part of a system with an AW anchor cover cap
- Caps lie flat against the surface even when mounted at an angle of up to 20°
- Screw has a conical transition in the lower part of the head thread
- Frictionless screwing prevents pulling the slat even if inserted off-centre
- Higher load-bearing capacity and requires no subsequent readjustments
- Can be combined with Jamo® screws when assembling substructures
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct fixing and load-bearing performance.
Applications
- Spacing assembly
- Windows
- Kitchen
- Dry roof ridge
- Door
- Substructure
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction ensures durability and long product life, reducing waste
- RoHS-compliant, ensuring no harmful substances are used
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth D-anchor Timber Screw 200 PCS is available for immediate purchase, ideal for construction and building applications involving timber fixing and substructure assembly.
