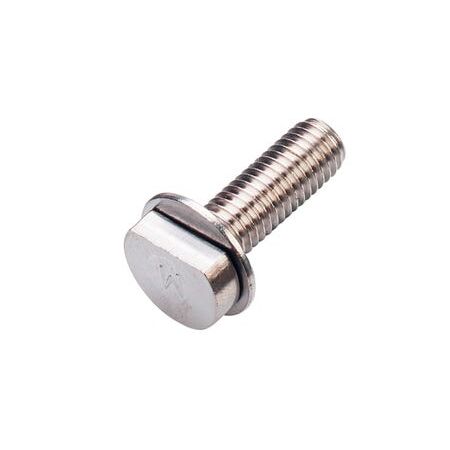

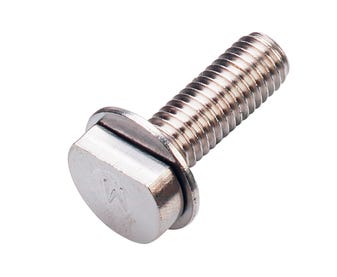

D-Head Bolt Set of 4 | M10 x 30mm | 304 Stainless Steel | Security Fastening by Cabac
The Cabac D-Head Bolt Set of 4 with Captive Washer is a stainless steel bolt set designed for pillar box assembly to deter unauthorised entry, featuring a special tube spanner requirement and optional cordless drill socket drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: D-Head Bolt Set OF 4 C/W Captive Washer
Brand: Cabac
SKU: DBI-SS-10-30K
Alternatively Known As: D-bolts for pillar boxes, stainless steel D-head bolts, security bolts for pillar boxes, captive washer bolts
Technical Specifications
- Material: 304 Stainless Steel
- Bolt Size: M10 x 30mm
- Includes captive washers
- Requires special tube spanner (DB-TBSS) for installation
- Optional cordless drill socket drive (D-SOCKET) available
- Dimensions (H x L x W): 10mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Set of four D-head bolts with captive washers
- Manufactured from 304 stainless steel for durability and corrosion resistance
- M10x30mm bolt size
- Requires a special tube spanner (DB-TBSS) for installation
- Optional cordless drill socket drive (D-SOCKET) available for faster cover removal and replacement
- Designed to deter unauthorised entry
Professional Installation Requirements
- Installation requires a special tube spanner (DB-TBSS) or optional cordless drill socket drive (D-SOCKET). Professional installation recommended to ensure secure fitting and compliance with electrical safety standards.
Applications
- Pillar box assembly to deter unauthorised entry
- Electrical and power connectivity installations requiring secure bolt fastening
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable stainless steel to ensure long product life and reduce waste
- Corrosion resistant materials reduce the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac D-Head Bolt Set of 4 with Captive Washer is available now for immediate purchase. Ideal for secure pillar box assembly in electrical and power connectivity applications.
