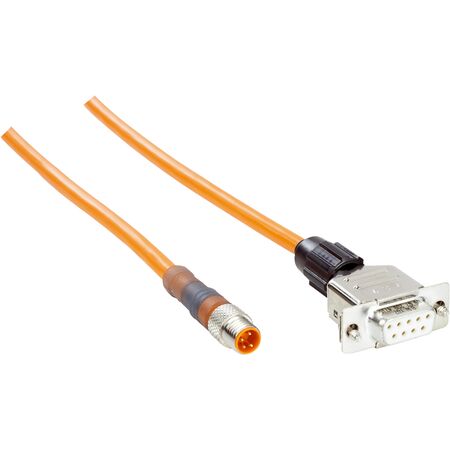

D-Sub to M8 Connector Cable | IP67 Rated | 2m PVC Cable | Durable TPU | by SICK
The D-Sub to M8 Connector Cable is designed for reliable industrial sensor connectivity, featuring a female D-Sub 9-pin connector and a male M8 4-pin connector. With a durable TPU material and an IP67 rating, this cable is perfect for harsh environments, ensuring secure connections and long-lasting performance in automation and machine building applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, D-Sub, 9-pin, straight
- Connection type head B: Male connector, M8, 4-pin, straight
- Connector material: TPU
- Connector color: Black
- Locking nut material: CuZn, nickel-plated brass
- Cable length: 2 m
- Cable jacket material: PVC
- Cable jacket color: Orange
- Cable diameter: 5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Reference voltage: ≤ 35 V
- Current loading: 4 A
- Authorizations: UL
- Enclosure rating: IP67 (EN 60529)
- Operating temperature: -40 °C to +90 °C
- Dimensions (H x L x W): 20mm x 2000mm x 50mm
- Weight: 0.1 kg
Key Features
- Female D-Sub 9-pin connector on head A
- Male M8 4-pin connector on head B
- Durable TPU connector material with black color
- Nickel-plated brass locking nut for secure connection
- 2 meter PVC cable with orange jacket for visibility
- Unshielded cable with 0.25 mm² conductor cross section
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +90°C
- Current loading capacity of 4 A
- UL authorized for safety compliance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- IP67 rating ensures long service life in harsh environments, reducing waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SICK DSL-8D04G02M025KM1 connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
