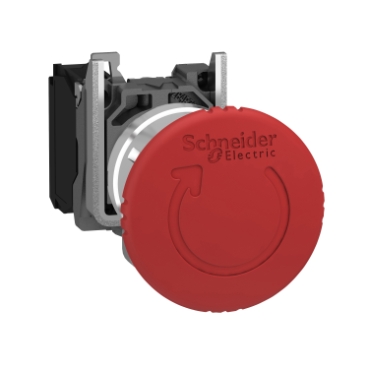

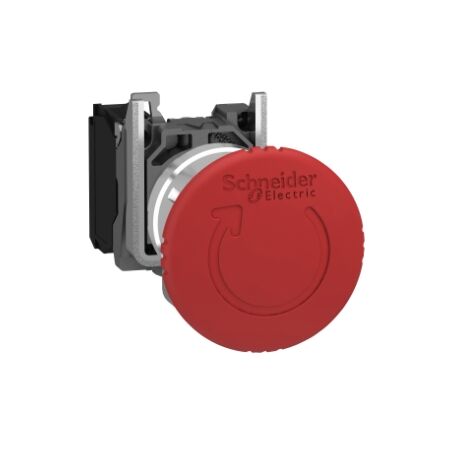

D40 Emergency Stop TTR Head | 40mm Red | Latching Turn-to-Release | IP66 Rated | @Pack of 1 | by Clipsal
The D40 Emergency Stop TTR Head is designed for high visibility and safety in industrial applications. Featuring a 40mm red actuator with a latching turn-to-release mechanism, it ensures secure operation. With an IP66 rating, this robust emergency stop head is perfect for manufacturing plants, electrical panels, and safety circuits, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: D40 Emergency Stop TTR Head | 40mm Red | Latching Turn-to-Release | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB4BS8442
Alternatively Known As: Emergency Stop Button, E-Stop Head, Emergency Stop Actuator, Clipsal Emergency Stop, SCHXB4BS8442
Technical Specifications
- Actuator type: Emergency stop head
- Head diameter: 40mm
- Colour: Red
- Mounting diameter: 22mm
- Operation: Latching, turn-to-release
- Contact configuration: 1NC (Normally Closed)
- Material: Durable plastic and metal components
- Ingress protection: IP66 (front face)
- Mechanical durability: 300,000 cycles
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.12 kg
Key Features
- 40mm red emergency stop head for high visibility
- Latching turn-to-release mechanism for secure operation
- 1 Normally Closed (1NC) contact block included
- Robust construction for industrial environments
- Compatible with Ø22mm mounting holes
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and correct integration into emergency stop circuits.
Applications
- Industrial machinery emergency stop control
- Manufacturing plants and automation systems
- Electrical panels and safety circuits
- Commercial and public facility safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards from machinery malfunction.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal D40 Emergency Stop TTR Head SCHXB4BS8442 is available for immediate purchase. Ideal for industrial, commercial, and public facility emergency stop applications.
