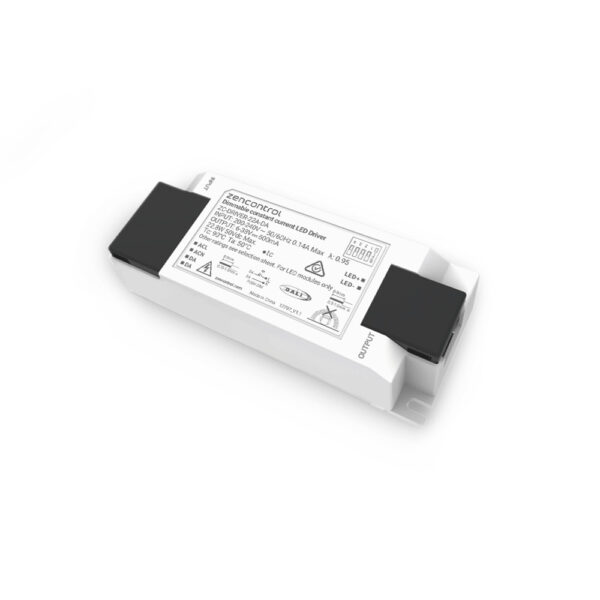

DALI-2 LED Driver Kit | 1.2m Flex & Plug | 950mA Constant Current | Flicker-Free Dimming | by Ektor

BRAND: Ektor
SKU: DK1-0AADADZX00095
$78.00 List price: $94.40
+ −
30 Days Return Delivery Options
The DALI-2 LED Driver Kit is designed for seamless integration into commercial and residential LED lighting systems. Featuring a 1.2m flex and plug, this driver operates at a constant current of 950mA, ensuring flicker-free dimming for enhanced visual comfort. Ideal for DALI-2 compatible installations, it offers a wide input voltage range and high power factor, making it a reliable choice for energy-efficient lighting solutions.

Alternatively Known As: DALI LED Driver, DALI-2 LED Driver Kit, Constant Current LED Driver, Flicker-Free LED Driver

Technical Specifications
  • Driver Type: DALI DT6 LED Driver with DALI-2 DT6 support
  • Input Voltage: 230Vac (-6%/+10%), 50 Hz
  • Input Current: 0.14 A (typical for 250mA model)
  • Power Factor: 0.95
  • Driver Power: 22.8 W (for 250mA model), up to 41.8 W (for 1100mA model)
  • Driver Current Range: 250 mA to 1100 mA selectable
  • Output Voltage Range: 6-38 V
  • Surge Protection: 2kV line to neutral
  • Standby Power: 0.5 W
  • Operating Temperature: -20 to 50 °C
  • Dimmable: Yes
  • Wiring: 1.2m 2 core flex and plug plus 2 core flying lead (DALI)
  • Short Term Light Modulation (PstLM): ≤ 0.011
  • Stroboscopic Visibility Measure (SVM): ≤ 0.005
  • Dimensions (H x L x W): 30mm x 60mm x 120mm
  • Weight: 0.3 kg
Key Features
  • DALI DT6 LED driver with full DALI-2 DT6 support for flicker-free dimming
  • Constant current driver mode with selectable driver currents from 250mA to 1100mA
  • Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
  • Wide input voltage range of 216Vac to 253Vac suitable for Australian mains
  • High power factor of 0.95 and low standby power consumption of 0.5W
  • Surge protection of 2kV between line and neutral
  • Operating temperature range from -20°C to 50°C
  • Low short term light modulation (PstLM ≤ 0.011) and stroboscopic visibility measure (SVM ≤ 0.005) for visual comfort
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with DALI lighting control systems.
Applications
  • Commercial and residential LED lighting control
  • DALI-2 compatible lighting systems requiring flicker-free dimming
  • Indoor LED driver installations with constant current requirements
Standards & Compliance
  • AS/NZS 61347.1
  • AS 61347.2.13
  • AS CISPR 15
Environmental Benefits
  • Energy-efficient LED driver reduces power consumption
  • Low standby power minimizes energy waste
  • Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information

Standard manufacturer warranty applies. Please refer to Ektor warranty terms for details.

Available Now

The Ektor DALI-2 LED Driver Kit with 1.2m flex and plug is available for immediate purchase, ideal for commercial and residential LED lighting applications requiring reliable and flicker-free dimming.
