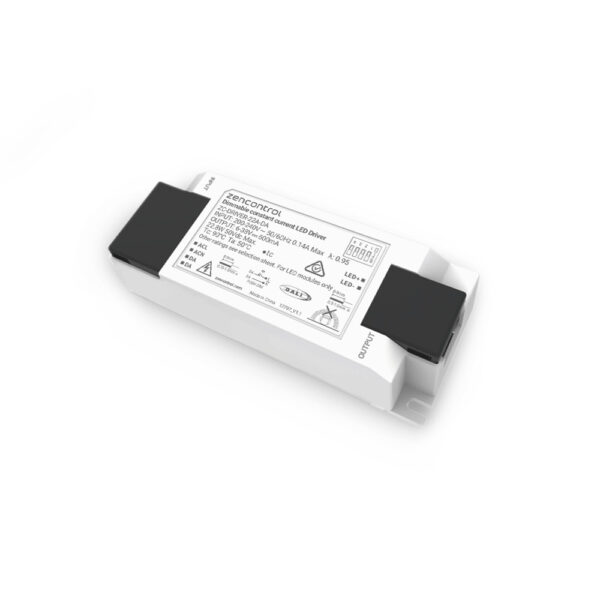

DALI-2 LED Driver Kit | 1.2m Flex & Plug | Constant Current 450mA | by Ektor
The DALI-2 LED Driver Kit features a 1.2m flex and plug, designed for seamless integration into LED lighting systems. With a constant current of 450mA and flicker-free dimming capabilities, this driver is perfect for both commercial and residential applications, ensuring optimal performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI LED Driver Kit, DALI-2 LED Driver, LED Driver with Flex and Plug, Constant Current LED Driver
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Input Current: 0.14 A
- Surge Protection L-N: 2kV
- Standby Power: 0.5 W
- Driver Type: DALI DT6 LED Driver
- Driver Mode: Constant Current
- Driver Power: 22.8 W
- Driver Current: 450 mA
- Output Voltage Range: 6-38 V
- Flex & Plug Length: 1200 mm
- Short Term Light Modulation (PstLM): 0.011
- Stroboscopic Visibility Measure (SVM): 0.005
- Operating Temperature Range: -20 to 50 °C
- Dimmable: Yes
- Dimensions (H x L x W): 40mm x 200mm x 120mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED driver with full support for DT6 allowing flicker-free dimming
- Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
- Constant current driver mode with selectable driver current options
- High power factor of 0.95 for efficient energy use
- Surge protection of 2kV between line and neutral
- Low standby power consumption of 0.5 W
- Operating temperature range from -20 to 50 °C
- Short Term Light Modulation (PstLM) less than 1.0 to reduce flicker
- Stroboscopic Visibility Measure (SVM) less than 0.4 to minimize stroboscopic effects
- Dimmable with compliant DALI-2 application controllers
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- LED lighting control in commercial and residential buildings
- DALI-2 compliant lighting systems requiring flicker-free dimming
- Integration with DALI-2 application controllers for advanced lighting management
Standards & Compliance
- AS/NZS 61347.1
- AS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient driver reduces power consumption and operational costs
- Flicker-free dimming improves lighting quality and reduces eye strain
- Low standby power consumption minimizes energy waste
Warranty Information
Standard manufacturer warranty applies; please refer to Ektor for specific warranty terms.
Available Now
The Ektor DALI-2 LED Driver Kit with 1.2m flex and plug is available for immediate purchase, ideal for use in commercial and residential LED lighting control systems.
