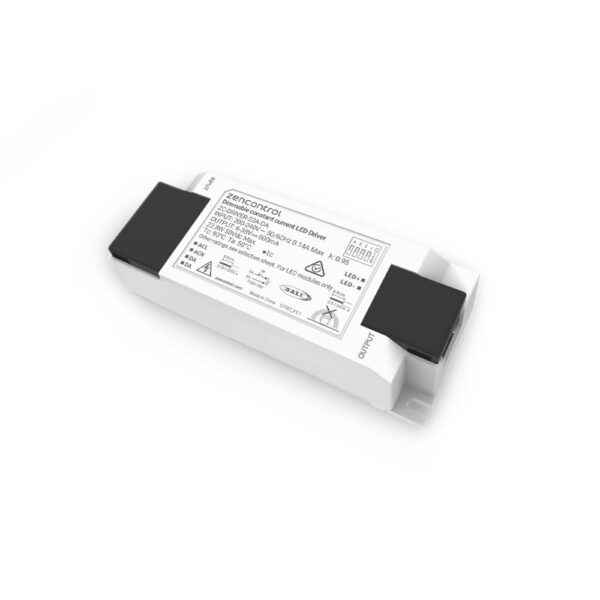

DALI-2 LED Driver Kit | 1.2m Flex & Plug | Constant Current 600mA | by Ektor
The DALI-2 LED Driver Kit is designed for efficient LED lighting control, featuring a 1.2m flex and plug along with a constant current output set to 600mA. Ideal for both commercial and residential applications, this driver ensures flicker-free dimming and operates within a wide temperature range of -20 to 50 °C, making it perfect for various indoor lighting installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI LED Driver Kit, DALI-2 LED Driver, Constant Current LED Driver, DALI Flicker-Free Driver
Technical Specifications
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Input Current: 0.14 A (for 600mA driver current model)
- Driver Power: 22.8 W
- Driver Current: 600 mA (model specific)
- Output Voltage Range: 6-38 V
- Flex & Plug Length: 1200 mm
- Wiring Type: Flex and Plug (2 pin) and 2 wire flying lead (DALI)
- Surge Protection L-N: 2kV
- Standby Power: 0.5 W
- Operating Temperature Range: -20 to 50 °C
- Dimensions (H x L x W): 40mm x 70mm x 150mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED driver with full support for DT6 allowing flicker-free dimming
- Includes 1.2m 2 core flex and plug plus 2 core flying lead
- Constant current driver mode with selectable driver current options
- Surge protection of 2kV between line and neutral
- Low standby power consumption of 0.5 W
- Wide operating temperature range from -20 to 50 °C
- Input voltage range 216Vac to 253Vac (230Vac nominal)
- Short Term Light Modulation (PstLM) less than 1.0 for reduced flicker
- Stroboscopic Visibility Measure (SVM) less than 0.4 to minimize visual discomfort
- Dimmable with compliant DALI-2 application controllers
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper DALI system integration.
Applications
- Commercial and residential LED lighting control
- DALI-2 compatible lighting systems requiring flicker-free dimming
- Indoor lighting installations with constant current LED drivers
Standards & Compliance
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Flicker-free dimming improves lighting quality and reduces eye strain
- Low standby power consumption minimizes energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Ektor warranty terms for details.
Available Now
The Ektor DALI-2 LED Driver Kit with 1.2m flex and plug is available now for immediate purchase. Ideal for commercial and residential LED lighting control applications.
