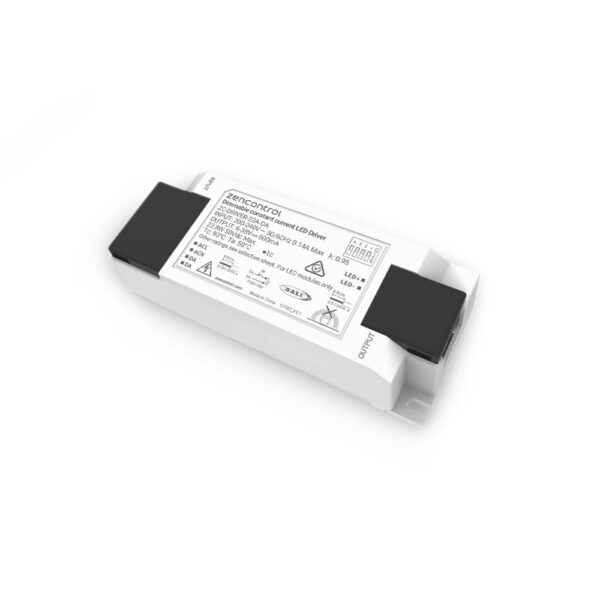

DALI-2 LED Driver Kit | 1.2m Flex & Plug | Flicker-Free Dimming | 850mA | by Ektor
The DALI-2 LED Driver Kit is designed for seamless LED lighting control, featuring a 1.2m flex and plug for easy installation. With a constant current mode set to 850mA and flicker-free dimming capabilities, it's perfect for both commercial and residential applications, ensuring energy efficiency and enhanced lighting quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI-2 LED Driver Kit, Constant Current LED Driver, Flicker-Free LED Driver, DALI DT6 LED Driver
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Input Current: 0.14 A (typical)
- Surge Protection: 2kV L-N
- Standby Power: 0.5 W
- Driver Type: DALI DT6 LED Driver
- Driver Mode: Constant Current
- Driver Power: 22.8 W
- Driver Current: 850 mA (settable from 250 mA to 1100 mA)
- Output Voltage Range: 6-38 V
- Dimmable: Yes
- Flex & Plug Length: 1200 mm
- Short Term Light Modulation (PstLM): 0.011
- Stroboscopic Visibility Measure (SVM): 0.005
- Operating Temperature Range: -20 to 50 °C
- Dimensions (H x L x W): 40mm x 70mm x 150mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED Driver with full support for DT6 allowing flicker-free dimming
- Constant current driver mode with adjustable current from 250mA to 1100mA
- Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
- High power factor of 0.95 and low standby power consumption of 0.5W
- Surge protection of 2kV between line and neutral
- Wide operating temperature range from -20 to 50 °C
- Short Term Light Modulation (PstLM) and Stroboscopic Visibility Measure (SVM) well below required limits for visual comfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and residential LED lighting control
- DALI-2 compatible lighting systems requiring flicker-free dimming
- Indoor LED driver installations with constant current requirements
Standards & Compliance
- AS/NZS 61347.1
- AS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Low standby power minimizes energy waste
- Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information
Standard manufacturer warranty applies. Please refer to Ektor warranty terms for details.
Available Now
The Ektor Driver Kit - DALI-2 LED Driver with 1.2m flex and plug set to 850mA is available for immediate purchase. Ideal for commercial and residential LED lighting control applications.
