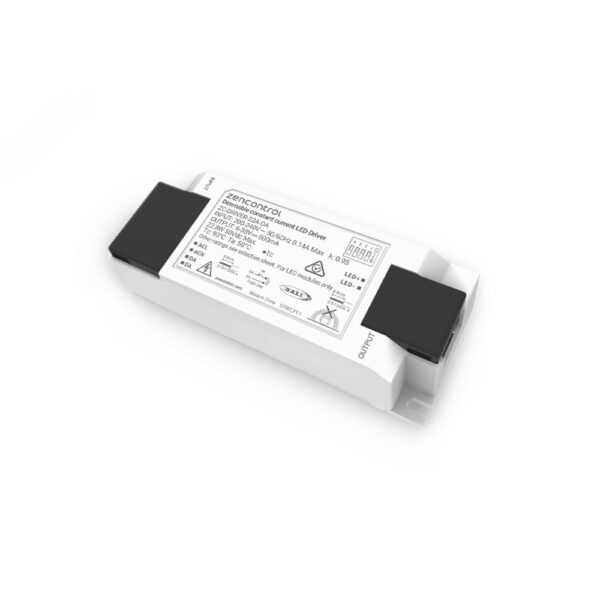

DALI-2 LED Driver Kit | 1.2m Flex & Plug | 700mA Constant Current | Flicker-Free Dimming | by Ektor
The DALI-2 LED Driver Kit is designed for seamless LED lighting control, featuring a 1.2m flex and plug along with a 700mA constant current output. Ideal for both commercial and residential applications, this driver ensures flicker-free dimming and operates efficiently within a wide temperature range of -20 to 50 °C, making it perfect for various lighting setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI LED Driver Kit, DALI-2 LED Driver, Constant Current LED Driver, Flicker-Free LED Driver
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Input Current: 0.14 A
- Driver Power: 22.8 W
- Driver Current: 700 mA
- Output Voltage Range: 6-38 V
- Surge Protection: 2kV L-N
- Standby Power: 0.5 W
- Operating Temperature Range: -20 to 50 °C
- Dimmable: Yes
- Wiring: Flex and Plug (2 pin) and 2 wire flying lead (DALI)
- Driver Mode: Constant Current
- Short Term Light Modulation (PstLM): 0.011
- Stroboscopic Visibility Measure (SVM): 0.005
- Dimensions (H x L x W): 40mm x 70mm x 150mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED driver with full DALI-2 DT6 support for flicker-free dimming
- Constant current driver mode with selectable driver current options
- Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
- High power factor of 0.95 and low standby power consumption of 0.5W
- Surge protection of 2kV between line and neutral
- Wide operating temperature range from -20 to 50 °C
- Short Term Light Modulation (PstLM) and Stroboscopic Visibility Measure (SVM) well below required limits
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper DALI system integration.
Applications
- Commercial and residential LED lighting control
- DALI-2 compatible lighting systems requiring flicker-free dimming
- Indoor LED driver installations with constant current requirements
Standards & Compliance
- Complies with AS/NZS 61347.1
- Complies with AS 61347.2.13
- Complies with AS CISPR 15
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Low standby power minimizes energy waste
- Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information
Standard manufacturer warranty applies; please refer to Ektor for specific warranty terms.
Available Now
The Ektor DALI-2 LED Driver Kit with 1.2m flex and plug is available for immediate purchase, ideal for commercial and residential LED lighting control applications.
