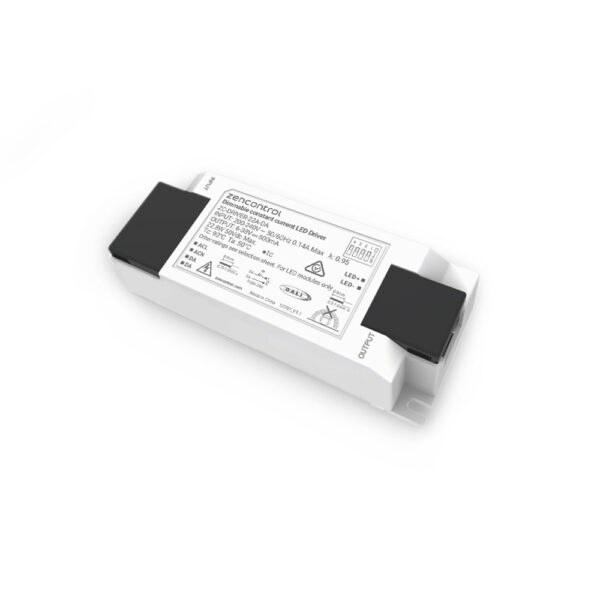

DALI-2 LED Driver Kit | 1.2m Flex & Plug | Flicker-Free Dimming | 500mA | by Ektor

BRAND: Ektor
SKU: DK1-0AADADZX00050
$70.20 List price: $84.90
+ −
30 Days Return Delivery Options
The DALI-2 LED Driver Kit is designed for seamless LED lighting control, featuring a 1.2m flex and plug for easy installation. With a constant current mode set to 500mA and flicker-free dimming capabilities, it's perfect for both commercial and residential applications, ensuring optimal lighting quality and energy efficiency.

Alternatively Known As: DALI LED driver, DALI-2 LED driver, LED driver kit 500mA, flicker-free LED driver, constant current LED driver

Technical Specifications
  • Dimensions (H x L x W): 30mm x 60mm x 120mm
  • Weight: 0.3 kg
Key Features
  • DALI DT6 LED driver with full DALI-2 DT6 support for flicker-free dimming
  • Constant current driver mode with selectable driver currents from 250mA to 1100mA
  • Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
  • Wide input voltage range 216Vac - 253Vac (230Vac nominal)
  • High power factor of 0.95 and low standby power consumption of 0.5W
  • Surge protection up to 2kV between line and neutral
  • Operating temperature range from -20°C to 50°C
  • Short Term Light Modulation (PstLM) ≤ 0.011 and Stroboscopic Visibility Measure (SVM) ≤ 0.005 ensuring minimal flicker and visual discomfort
  • Dimmable with compliant DALI-2 application controllers
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper DALI system integration.
Applications
  • Commercial and residential LED lighting control
  • DALI-2 compatible lighting systems requiring flicker-free dimming
  • Indoor LED driver applications with constant current requirements
Standards & Compliance
  • AS/NZS 61347.1
  • AS 61347.2.13
  • AS CISPR 15
Environmental Benefits
  • Energy-efficient LED driver reduces power consumption
  • Low standby power minimizes energy waste during non-operation
  • Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information

Standard manufacturer warranty applies. Please refer to Ektor warranty terms for details.

Available Now

The Ektor DALI-2 LED Driver Kit 500mA is available for immediate purchase, ideal for LED lighting control in commercial and residential environments.
