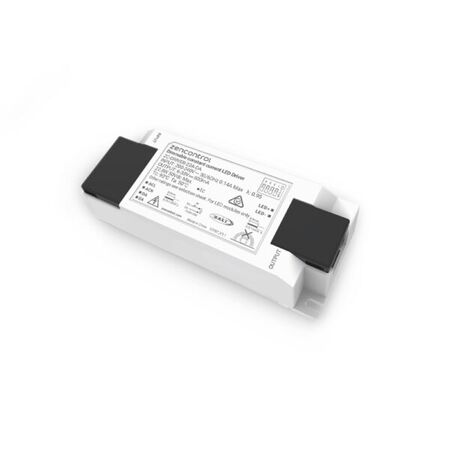

DALI-2 LED Driver Kit | 250mA Constant Current | 1.2m Flex & Plug | by Ektor
The DALI-2 LED Driver Kit is designed for efficient LED lighting control, featuring a constant current of 250mA and a 1.2m flex and plug for easy installation. Ideal for both commercial and residential applications, this driver ensures flicker-free dimming and operates within a wide input voltage range, making it a reliable choice for DALI-2 compliant systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI-2 LED Driver Kit, Constant Current LED Driver, DALI DT6 LED Driver, LED Driver with Flex and Plug
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Input Current: 0.14 A
- Driver Power: 22.8 W
- Driver Current: 250 mA
- Output Voltage Range: 6-38 V
- Power Factor: 0.95
- Surge Protection L-N: 2kV
- Standby Power: 0.5 W
- Flex & Plug Length: 1200 mm
- Dimmable: Yes
- Driver Type: DALI DT6 LED Driver
- Driver Mode: Constant Current
- Short Term Light Modulation (PstLM): 0.011
- Stroboscopic Visibility Measure (SVM): 0.005
- Dimensions (H x L x W): 40mm x 70mm x 150mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED driver with full DALI-2 DT6 support for flicker-free dimming
- Constant current driver mode with selectable current options up to 1100 mA
- Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
- Wide input voltage range 216Vac - 253Vac suitable for Australian mains
- High power factor of 0.95 and low standby power consumption of 0.5 W
- Surge protection of 2kV between line and neutral
- Operating temperature range from -20 to 50 °C
- Short Term Light Modulation (PstLM) and Stroboscopic Visibility Measure (SVM) well below required limits ensuring visual comfort
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and residential LED lighting control
- DALI-2 compliant lighting systems requiring flicker-free dimming
- Indoor LED driver applications with constant current requirements
Standards & Compliance
- AS/NZS 61347.1
- AS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Low standby power minimizes energy waste during non-use
- Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information
Standard manufacturer warranty applies. Please refer to Ektor warranty terms for details.
Available Now
The Ektor DALI-2 LED Driver Kit 250mA with 1.2m flex and plug is available for immediate purchase. Ideal for commercial and residential LED lighting control applications requiring reliable and flicker-free dimming.
