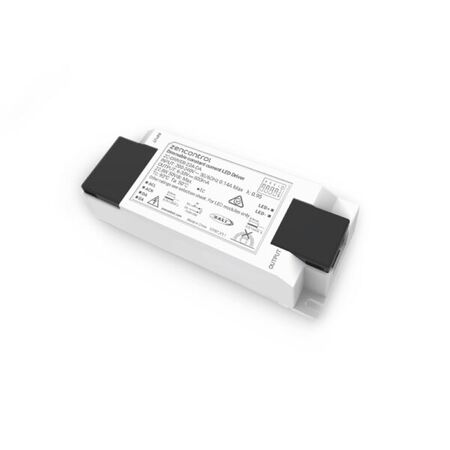

DALI DT6 LED Driver Kit | Flicker-Free Dimming | Constant Current | by Ektor
The DALI DT6 LED Driver Kit is designed for commercial and industrial LED lighting control systems, featuring flicker-free dimming and a constant current mode set to 400mA. With a robust surge protection of 2kV and an operating temperature range of -20 to 50 °C, this driver ensures reliable performance and energy efficiency, making it ideal for DALI-2 compliant applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI DT6 LED Driver, DALI-2 LED Driver, Flicker-Free LED Driver, Constant Current LED Driver
Technical Specifications
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Input Current: 0.14 A
- Driver Power: 22.8 W
- Driver Current: 400 mA (settable range 250 mA to 1100 mA)
- Output Voltage Range: 6-38 V
- Surge Protection: 2kV L-N
- Standby Power: 0.5 W
- Operating Temperature: -20 to 50 °C
- Flex & Plug Length: 1200 mm
- Wiring Type: Flex and Plug (2 pin) with 2 wire flying lead (DALI)
- Short Term Light Modulation (PstLM): 0.011
- Stroboscopic Visibility Measure (SVM): 0.005
- Dimensions (H x L x W): 40mm x 200mm x 120mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED Driver with full support for DT6 allowing flicker-free dimming
- Constant current driver mode
- Dimmable with compliant DALI-2 application controllers
- Surge protection of 2kV L-N
- Low standby power consumption of 0.5 W
- Operating temperature range from -20 to 50 °C
- Flex and plug (2 pin) with 2 wire flying lead (DALI)
- Short Term Light Modulation (PstLM) ≤ 1.0 for minimal flicker
- Stroboscopic Visibility Measure (SVM) ≤ 0.4 to reduce visual discomfort
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with DALI lighting control systems.
Applications
- Commercial and industrial LED lighting control systems
- DALI-2 compliant dimmable LED driver applications
- Lighting installations requiring flicker-free dimming
Standards & Compliance
- AS/NZS 61347.1
- AS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Low standby power minimizes energy waste
- Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information
Standard manufacturer warranty applies. Please refer to Ektor for specific warranty terms.
Available Now
The Ektor Driver Kit DALI-DT6 F&P 2 +Flying Set to 400mA is available for immediate purchase, ideal for commercial and industrial LED lighting control applications.
