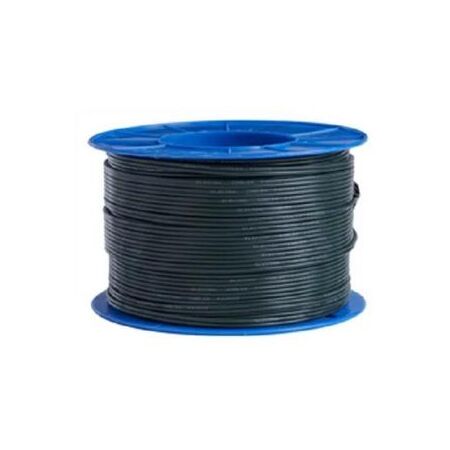

Data & Instrumentation Cable 14/0.2 x 4C O/A Shielded 100m Electra
Electra 14/0.2 x 4C O/A Shielded data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable 4 Core Screened, Multi Pair Instrumentation Cable, Screened Control Cable
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power connection
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.3 kg
- Overall screened multi-pair instrumentation cable
- Plain annealed copper wire conductor
- PVC insulation (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC sheath (5V-90 or 4V-75)
- Voltage rating suitable for 240V radial thickness sheath, not for mains power connection
- Installation should be performed by qualified professionals familiar with instrumentation cable standards and safety requirements.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling systems
- Alarm systems
- AS/NZS 3808 – PVC Insulation and Sheath Standards
- Durable PVC insulation and sheath materials extend cable life reducing waste
- Screening reduces electromagnetic interference improving system efficiency
Standard manufacturer warranty applies. Please refer to Electra Cables warranty policy for details.
Electra Cables Cable Instrumentation 14/0.20 4 Core Overall Screened is available for immediate purchase, ideal for electronic inter-connection applications in industrial and commercial settings.
Q: What is this cable used for?
A: It's built for internal and external inter-connections of electronic apparatus, including computer systems, intercoms, telemetering, and signalling systems.
Q: What standards does this cable comply with?
A: It complies with AS1125 for the conductor and AS/NZS 3808 for PVC insulation and sheath, with standard manufacturer warranty applying per Electra Cables' warranty policy.
For a comparable core count with a different pair configuration, the 6 core 14 0.20 screened instrumentation cable shares the same aluminium tape screen construction.
Where a single pair is sufficient, the 24 0.20 1 pair screened instrumentation cable covers similar telemetering applications.For heavier conductor gauge, the 32 0.20 3 core screened instrumentation cable is built to the same PVC sheath rating.
