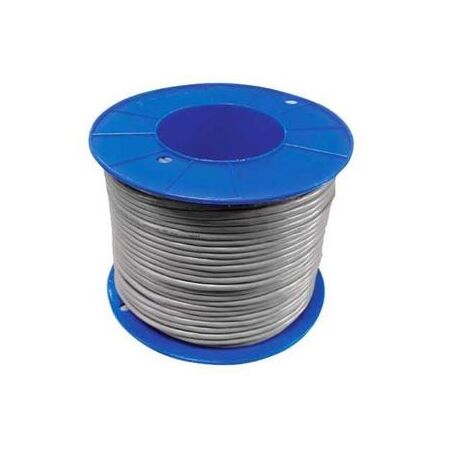

Data & Instrumentation Cable 7/0.2 x 3Pr O/A SHLD 100m Electra
Electra 7/0.2 x 3Pr O/A SHLD data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: 3 Pair Screened Data Cable, Multi-Pair Data Cable, PVC Insulated Data Cable
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power connection
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 8mm x 1000mm x 8mm
- Weight: 0.1 kg
- Overall screened multi-pair data cable
- Plain annealed copper conductor
- PVC insulation (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC sheath (5V-90 or 4V-75)
- Voltage rating suitable for 240V radial thickness sheath
- Must not be connected to mains power supplies
- Installation should be performed by qualified personnel familiar with low voltage data cabling and screening requirements. Must not be connected to mains power supplies.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
- Complies with AS/NZS 3808 – PVC Insulation and Sheath
- Complies with AS1125 – Conductor Standards
- PVC insulation and sheath materials are compliant with AS/NZS 3808 standards ensuring safety and durability
- Screening reduces electromagnetic interference, improving system efficiency and reducing energy waste
Warranty as per Electra Cables standard terms and conditions.
Electra Cables Data Cable 0.22mm 7/0.20 3 Pair Overall Screened is available for immediate purchase, ideal for electronic interconnection applications in commercial and industrial environments.
Q: Can this cable be connected to mains power?
A: No, it must not be connected to mains power supplies. It's rated for 240V radial thickness sheath applications such as data, signalling and low voltage systems.
Q: What is this cable used for?
A: It's suited to internal and external inter-connections of electronic apparatus, computer systems, intercoms, telemetering, and signalling and alarm systems.
For a single-circuit option, the screened instrumentation cable 0.2mm 1 pair PVC 100m offers a similar screened construction on fewer conductors.
For applications needing more pairs, the screened instrumentation cable 0.5mm multi-pair PVC 100m extends the same screened design to a heavier gauge and higher pair count.
Where a 3-core rather than 3-pair configuration is needed, the screened instrumentation cable 0.5mm 3 core PVC 100m offers a comparable Electra Cables construction.
