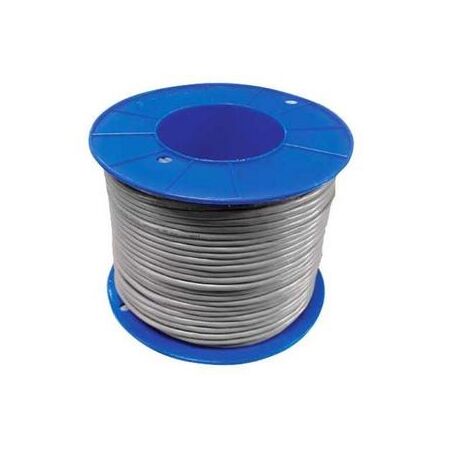

Data & Instrumentation Cable 7/0.2 x 4C O/A SHLD 100m Electra
Electra 7/0.2 x 4C O/A SHLD data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: 4 Core Screened Data Cable, Multi Core Data Cable, Tinned Copper Data Cable, PVC Insulated Data Cable
- Conductor: Tinned Copper
- Insulation: PVC V75, 0.3mm thickness
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC V-75
- Voltage rating: 100V DC or 32V AC
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
- Overall screened multi-core cable
- Tinned copper conductor for corrosion resistance
- PVC V75 insulation with 0.3mm thickness
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC V-75 sheath
- Voltage rating: 100V DC or 32V AC
- Must not be connected to mains power supplies
- Installation should be performed by qualified personnel familiar with low voltage data cabling and safety standards. Must not be connected to mains power supplies.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
- AS/NZS 3808 – PVC Insulation and Sheath for Cables
- PVC insulation and sheath are recyclable
- Tinned copper conductor enhances durability reducing replacement frequency
Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.
Electra Cables Data Cable 0.22mm 7/0.20 4 Core Overall Screened is available for immediate purchase, ideal for electronic interconnection applications in residential, commercial, and industrial settings.
Q: Can this cable be connected directly to mains power?
A: No, it's rated for a maximum of 100V DC or 32V AC and must not be connected to mains power supplies.
Q: What materials make up the insulation and screening?
A: It uses PVC V75 insulation, a PVC V90 outer sheath, and an overall aluminium tape screen with polyester mylar tape lapping.
