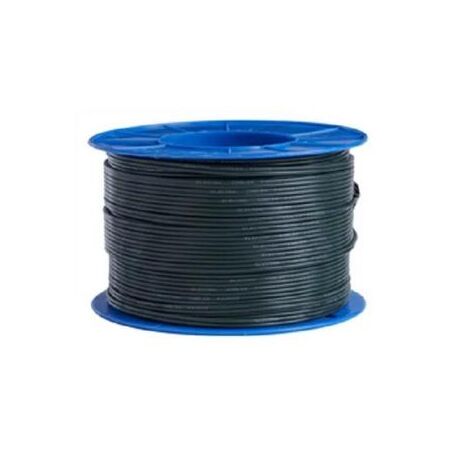

Data & Instrumentation Cable 7/0.3 x 1Pr O/A SHLD 100m Electra
Electra 7/0.3 x 1Pr O/A SHLD data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable 0.5mm, Overall Screened Instrumentation Cable, Multi Pair Instrumentation Cable
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
- Overall screened multi-pair cable
- Plain annealed copper conductor
- PVC insulation (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC sheath (5V-90 or 4V-75)
- Voltage rating suitable for 240V radial thickness sheath, not for mains power
- Installation should be performed by qualified professionals familiar with low voltage instrumentation cabling to ensure compliance and safety.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
- AS/NZS 3808 – PVC Insulation and Sheath Standards
- PVC insulation and sheath materials are recyclable
- Designed for low voltage applications reducing energy loss
Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.
Electra Cables Instrumentation Cable 0.5mm 7/0.30 1 Pair Overall Screened is available for immediate purchase, ideal for electronic interconnection applications in industrial and commercial settings.
Q: Can this cable be used for mains power connections?
A: No, it's rated for a 240V radial thickness sheath and is not designed for mains power supplies. It's intended for low voltage instrumentation and signalling applications.
Q: What applications suit this cable?
A: It's suited to internal and external inter-connections of electronic apparatus, computer systems, intercoms, telemetering, and signalling and alarm systems.
For a defined 3-pair configuration, the screened instrumentation cable 0.22mm 3 pair PVC 100m offers a comparable Electra Cables construction.
Where a 3-core rather than paired layout is needed, the screened instrumentation cable 0.5mm 3 core PVC 100m shares the same conductor size and screen type.
For a heavier conductor gauge, the screened instrumentation cable 0.88mm 2 pair PVC 100m offers a similar Electra Cables screened design.
