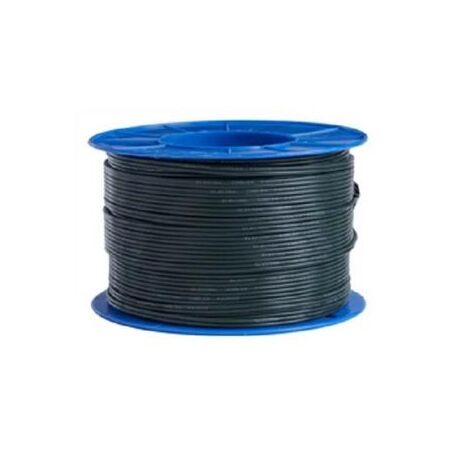

Data & Instrumentation Cable 7/0.3 x 3C O/A SHLD 100m Electra
Electra 7/0.3 x 3C O/A SHLD data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable 3 Core Screened, Multi-Pair Instrumentation Cable, Screened Control Cable
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage rating: 240V radial thickness sheath
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 8mm x 1000mm x 8mm
- Weight: 0.1 kg
- Overall screened multi-pair instrumentation cable
- Plain annealed copper wire conductor
- PVC V90HT or V75 insulation
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC 5V-90 or 4V-75 sheath
- Designed for 240V radial thickness sheath
- Not to be connected to mains power supplies
- Installation should be performed by a qualified electrician or technician experienced with instrumentation cables to ensure proper screening and connection.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling systems
- Alarm systems
- AS/NZS 3808 – PVC Insulation and Sheath Standards
- Durable PVC insulation and sheath materials extend cable life reducing waste
- Screening reduces electromagnetic interference improving system efficiency
Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.
Electra Cables Instrumentation Cable 0.5mm 7/0.30 3 Core Overall Screened is available for immediate purchase, ideal for electronic inter-connection applications in industrial and commercial settings.
Q: Can this cable be connected to mains power?
A: No, it's designed for a 240V radial thickness sheath and is not to be connected to mains power supplies. It's intended for signalling, alarm and low voltage instrumentation applications.
Q: What applications suit this cable?
A: It's suited to internal and external inter-connections of electronic apparatus, computer systems, intercoms, telemetering, signalling systems and alarm systems.
For a 3-pair rather than 3-core configuration, the screened instrumentation cable 0.22mm 3 pair PVC 100m offers a comparable Electra Cables construction.
Where a higher pair count is needed, the screened instrumentation cable 0.5mm multi-pair PVC 100m shares the same conductor size and sheath type.
For a heavier conductor gauge, the screened instrumentation cable 0.88mm 2 pair PVC 100m offers a similar Electra Cables screened design.
