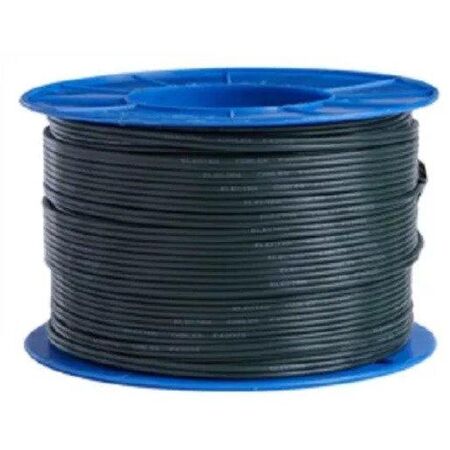

Data & Instrumentation Cable 7/0.4 x 1Pr O/A SHLD 100m Electra
Electra 7/0.4 x 1Pr O/A SHLD data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable, Screened Multi-Pair Cable, Electronic Interconnection Cable
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage rating: Not to be connected to mains power supplies, 240V radial thickness sheath
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 3.5 kg
- Overall screened multi-pair instrumentation cable
- Plain annealed copper conductor for reliable conductivity
- PVC insulation with high temperature rating (V90HT or V75)
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire for effective shielding
- PVC sheath with 240V radial thickness for safety
- Installation should be performed by qualified professionals familiar with instrumentation cable standards and safety requirements.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
- AS1125 – Conductor standard
- AS/NZS 3808 – PVC insulation and sheath standard
- Durable PVC insulation and sheath reduce environmental degradation
- Effective shielding minimizes electromagnetic interference, improving system efficiency
Standard manufacturer warranty applies. Please refer to Electra Cables for detailed warranty terms.
Electra Cables 7/0.4 X 1Pr O/A SHLD 100M is available for immediate purchase, ideal for electronic apparatus interconnections in industrial and commercial applications.
Q: What is this cable used for?
A: It's built for internal and external inter-connections of electronic apparatus, including computer systems, intercoms, telemetering, and signalling and alarm systems.
Q: What standards does this cable comply with?
A: It complies with AS1125 for the conductor and AS/NZS 3808 for insulation and sheath, with standard manufacturer warranty applying per Electra Cables' warranty terms.
For a higher pair count in the same series, the 7 0.4 3 pair screened instrumentation cable shares the same aluminium tape screen construction.
Where a two-pair configuration is needed, the 7 0.3 2 pair screened instrumentation cable covers similar telemetering applications.For a three-pair configuration in a finer gauge, the 7 0.3 3 pair screened instrumentation cable is built to the same PVC sheath rating.
