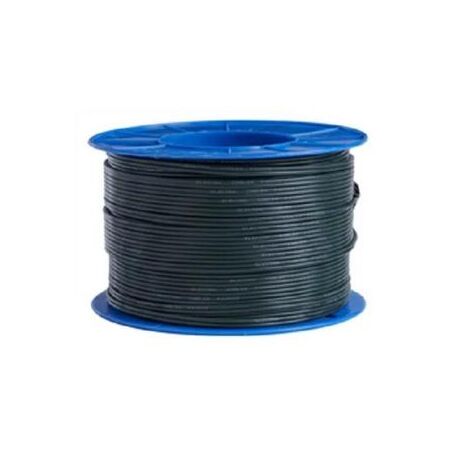

Data & Instrumentation Cable 7/0.40 x 3C O/A 100m Electra
Electra 7/0.40 x 3C O/A data & instrumentation cable is sold as a 100m roll. Ideal for instrumentation and control signal wiring.
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable, Screened Multi-Core Cable, Electronic Interconnection Cable
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage: 240V radial thickness sheath, not for mains power
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.15 kg
- Overall screened multi-pair instrumentation cable
- Plain annealed copper conductor for reliable conductivity
- PVC insulation with V90HT or V75 rating
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire for effective screening
- PVC sheath with 5V-90 or 4V-75 rating
- Voltage rating suitable for 240V radial thickness sheath, not for mains power
- Installation should be performed by qualified professionals familiar with instrumentation cable standards and safety requirements.
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
- AS/NZS 3808 – PVC Insulation and Sheath for Cables
- Durable PVC insulation and sheath extend cable life reducing waste
- Effective screening reduces electromagnetic interference, improving system efficiency
Standard manufacturer warranty applies. Please refer to Electra Cables warranty policy for details.
Electra Cables Instrumentation Cable 0.88mm 7/0.40 3 Core Overall Screened is available for immediate purchase, ideal for electronic apparatus interconnections in industrial and commercial applications.
Q: What conductor size does this cable use?
A: It uses 3 core 0.88mm plain annealed copper conductors, made up of 7/0.40mm strands, with an aluminium tape screen and drain wire.
Q: What applications suit this cable?
A: It's designed for internal and external inter-connections of electronic apparatus, computer systems, intercoms, telemetering, and signalling and alarm systems.
For a paired rather than core-based configuration, the screened instrumentation cable 0.88mm 2 pair PVC 100m offers the same conductor size.
Where a heavier conductor size is needed, the screened instrumentation cable 1.5mm 3 core PVC 100m extends the same 3-core screened design.
For a lighter conductor gauge, the screened instrumentation cable 0.5mm 3 core PVC 100m shares the same 3-core configuration.
