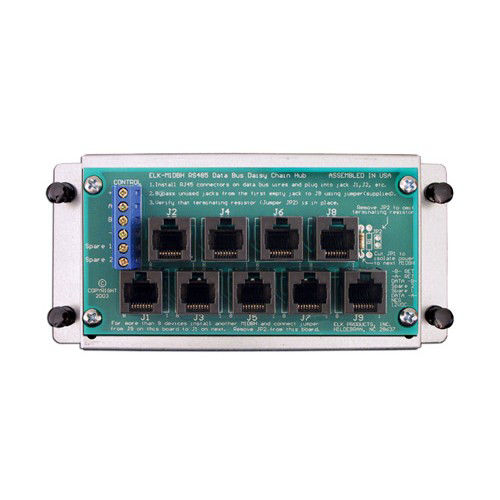

Data Bus Hub 9 Connections RJ45 Termination Ness
Ness data bus hub features 9 connections and RJ45 termination. Ideal for data bus wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Data Bus Hub, M1 Data Bus Hub, 101-207 Data Bus Hub, M1DBH
Technical Specifications
- Model: M1DBH
- SKU: 101-207
- Bus Connections: Up to 9 data bus connections
- Cable Compatibility: CAT5 or CAT6 cables with RJ45 plugs
- Input Connections: Elevator screw terminals
- Output Connections: RJ45 8-pin jacks
- Termination: On-board EOL termination with included RJ45 terminating resistor plug
- Bus Function: Internally series-connects Data A and Data B lines
- Expansion: Multiple hubs may be connected for additional capacity
- Mounting: Mounting plate for structured wiring boxes
- Circuit Board Size: 127 x 63.5 mm
- Dimensions (H x L x W): 12mm x 165mm x 76mm
- Weight: 0.15 kg
Key Features
- Provides up to nine RJ45 data bus connections
- Designed for multiple home-run cables to Ness M1 control systems
- Organises and internally series-connects Data A and Data B lines
- Accepts CAT5 and CAT6 cables fitted with RJ45 plugs
- Includes an RJ45 terminating resistor plug
- Supports connection of multiple hubs for system expansion
- Includes a mounting plate for structured wiring boxes
Professional Installation Requirements
- Installation should be completed by a suitably qualified security-system or low-voltage technician. Follow Ness M1 wiring instructions, observe correct RS-485 bus topology and install termination only as specified by the control-system documentation.
Applications
- Ness M1 security alarm systems
- Connecting multiple home-run data bus cables
- Structured wiring of keypads, expanders and other M1 bus modules
- RS-485 security-system data bus installations
Environmental Benefits
- Supports reuse of existing CAT5 or CAT6 cabling in structured security-system installations
- Organised, serviceable wiring can help reduce rework and replacement cable waste
- Ness publishes RoHS compliance documentation for its product range; confirm product-specific documentation where formal evidence is required
Warranty Information
3 years from date of purchase for Ness manufactured or supplied products, unless otherwise specified.
Available Now
Available through Ness and authorised Australian security, electrical and low-voltage trade distributors.
