Data Cable 12 Pair 0.22mm | LSZH Jacket | Grey Outer Sheath | 250m | Per 10m by Eltech

BRAND: Eltech
SKU: ELT7212P-ALT
$64.40 List price: $78.00
10 10m increments ($6.44 per 10m increments)
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

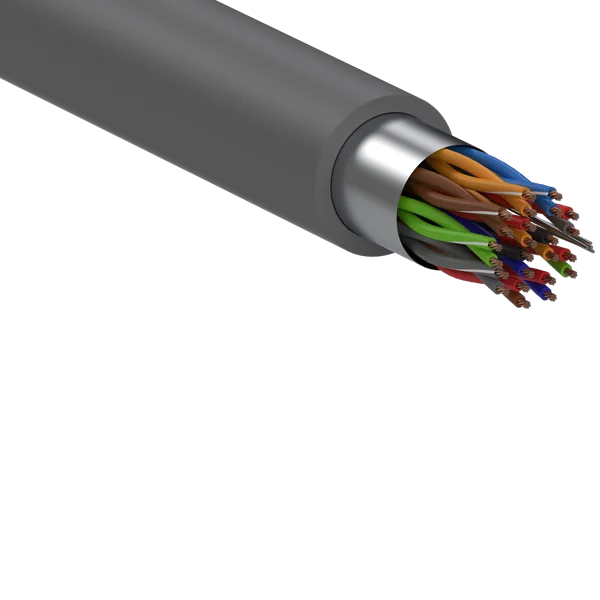

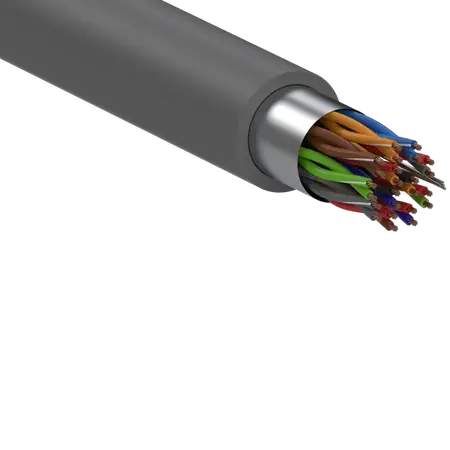

Data cable with 12 pair configuration and LSZH jacket—ideal for telecommunications and industrial data networks. Built for flexibility and safety, featuring a grey outer sheath for easy identification.

Product Name/Title: Data Cable 12 Pair 0.22mm 7/020 – Grey – Special – LSZH

Brand: Eltech

SKU: ELT7212P-ALT

Alternatively Known As: 12 Pair Data Cable, LSZH Data Cable, Instrumentation Cable, Grey Data Cable 12 Pair

Technical Specifications
  • Conductor Size: 0.22mm diameter
  • Stranding: 7 strands of 0.20mm
  • Number of Pairs: 12
  • Outer Colour: Grey
  • Cable Length per Drum: 250m
  • Minimum Order Quantity: 10m increments
  • Jacket Material: Low Smoke Zero Halogen (LSZH)
  • Dimensions (H x L x W): 10mm x 250000mm x 10mm
  • Weight: 2.5 kg
Key Features
  • 12 pair conductor configuration for multiple data channels
  • Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
  • Grey outer sheath for easy identification
  • 7/020 strand construction for flexibility and durability
Professional Installation Requirements
  • Installation should be performed by qualified professionals to ensure compliance with electrical and safety standards.
Applications
  • Data transmission in telecommunications
  • Instrumentation and control systems
  • Industrial and commercial data networks
Standards & Compliance
  • Complies with AS/NZS 5000 series for electrical cables and wiring
  • Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
  • LSZH jacket reduces toxic smoke and halogen emissions in case of fire
  • Supports safer indoor air quality and environmental compliance
Warranty Information

Standard manufacturer warranty applies; please refer to Eltech for details.

Available Now

The Eltech Data Cable 12 Pair 0.22mm 7/020 Grey LSZH is available now for immediate purchase. Ideal for telecommunications, instrumentation, and data network installations.

Data Sheet (media.nl, 137 Kb) [Download]
