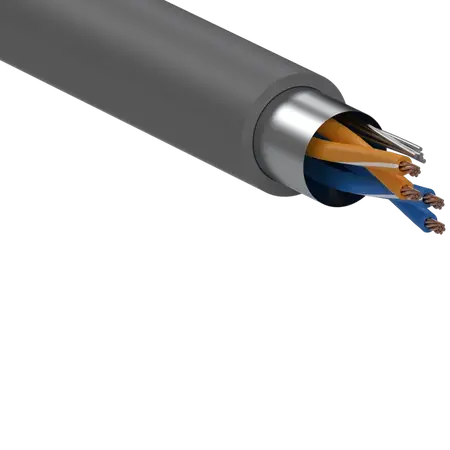

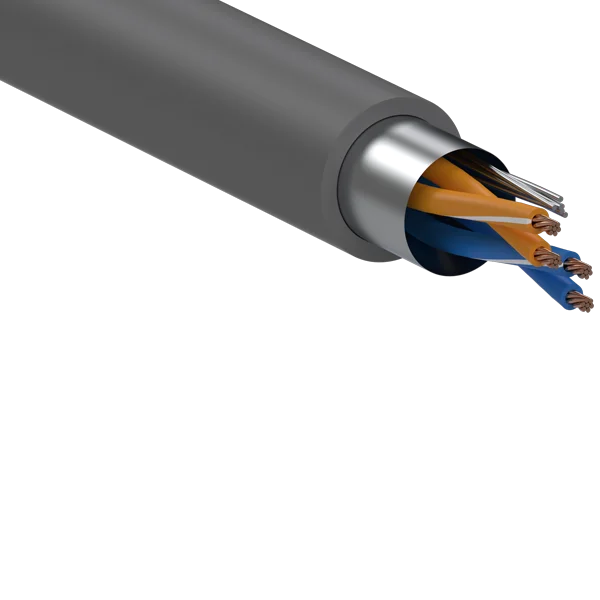

Data Cable 2 Pair 0.22mm | LSZH Jacket | 500m Drum Length | Grey | Per 100m by Eltech
Data cable with 2 pair configuration and 0.22mm conductor size—ideal for data transmission in industrial and commercial environments. Built for safety with a low smoke zero halogen (LSZH) jacket, ensuring compliance with fire safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Data Cable 2 Pair 0.22mm 7/020 – Grey – Special – LSZH
Brand: Eltech
SKU: ELT7202P-ALT-GR
Alternatively Known As: LSZH Data Cable 2 Pair, Low Smoke Zero Halogen Data Cable, Instrumentation Cable 2 Pair, Grey Data Cable
Technical Specifications
- Conductor Size: 0.22mm diameter
- Stranding: 7 strands of 0.20mm wire
- Number of Pairs: 2
- Colour: Grey
- Jacket Type: Low Smoke Zero Halogen (LSZH)
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 2.5 kg
Key Features
- 2 pair conductor configuration
- Conductor size 0.22mm with 7 strands of 0.20mm wire
- Grey LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
- Available in 500m drum lengths
- Minimum order quantity in 100m increments
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with data and instrumentation cable standards to ensure compliance and performance.
Applications
- Data transmission in industrial and commercial environments
- Instrumentation and control systems
- Low smoke zero halogen (LSZH) environments requiring fire safety
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
- Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Data Cable 2 Pair 0.22mm 7/020 Grey Special LSZH is available now for immediate purchase. Ideal for data and instrumentation applications requiring fire-safe cabling.
