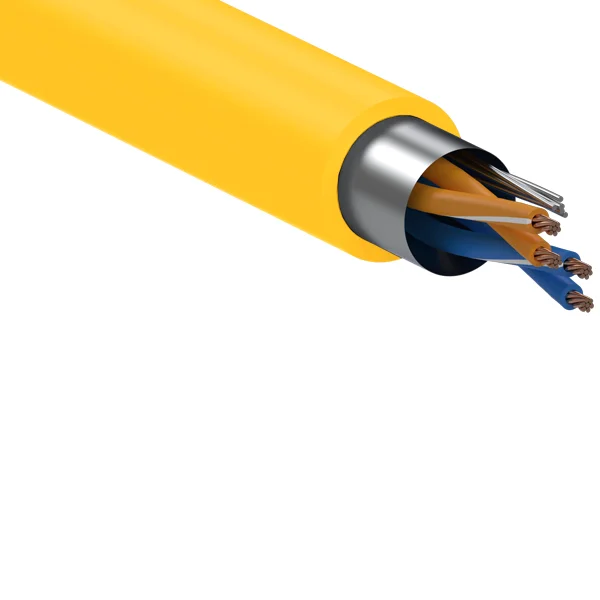

Data Cable 2 Pair 0.22mm | Yellow LSZH Jacket | 500m Drum Length | Fire Safety | Per 100m by Eltech
Data cable with 2 pair configuration and 0.22mm conductor size—ideal for data transmission in industrial and commercial environments. Built for safety with a yellow LSZH jacket, it minimizes smoke emissions and is available in 500m drum lengths.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Data Cable 2 Pair 0.22mm 7/020 – Yellow – Special – LSZH
Brand: Eltech
SKU: ELT7202P-ALT
Alternatively Known As: 2 Pair Data Cable, LSZH Data Cable, Instrumentation Cable, Low Smoke Zero Halogen Cable
Technical Specifications
- Conductor Size: 0.22mm diameter, 7 strands of 0.20mm
- Number of Pairs: 2
- Colour: Yellow
- Drum Length: 500m
- Minimum Order Quantity: 100m increments
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 6mm x 500000mm x 6mm
- Weight: 2 kg
Key Features
- 2 pair conductor configuration
- Conductor size 0.22mm with 7 strands of 0.20mm wire
- Yellow LSZH jacket for enhanced fire safety and low smoke emission
- Available in 500m drum lengths
- Minimum order quantity of 100m increments
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical standards and safety regulations.
Applications
- Data transmission in industrial and commercial environments
- Instrumentation and control systems
- Low smoke zero halogen (LSZH) environments requiring fire safety
Standards & Compliance
- Complies with AS/NZS 5000.1 for electrical cables and wiring
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Data Cable 2 Pair 0.22mm 7/020 Yellow LSZH is available for immediate purchase, ideal for data and instrumentation cable applications requiring fire safety compliance.
