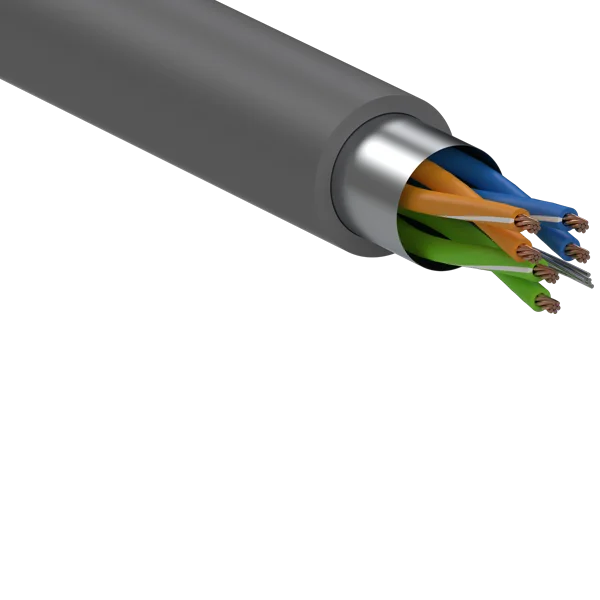

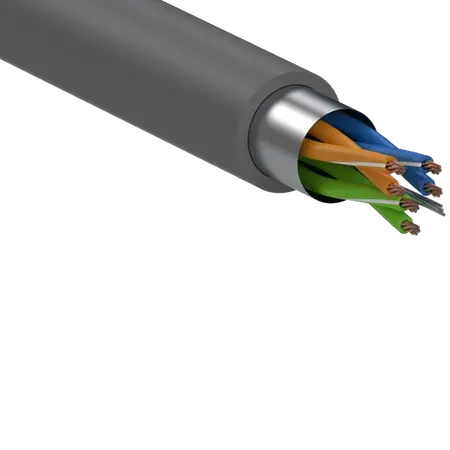

Data Cable 3 Pair 0.22mm | PVC Insulation | 500m Drum Length | Grey | Per 100m by Eltech
Data cable with 3 pair cores and 0.22mm conductor size—ideal for data transmission in communication systems. Built for industrial and commercial applications, featuring durable grey PVC insulation for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Data Cable 3 Pair 0.22 7/020
Brand: Eltech
SKU: ELT7203P
Alternatively Known As: 3 Pair Data Cable, 0.22mm Data Cable, Instrumentation Cable, PVC Data Cable
Technical Specifications
- Conductor Size: 0.22mm
- Stranding: 7 strands of 0.20mm
- Number of Cores: 3 Pair
- Insulation Material: PVC
- Colour: Grey
- Drum Length: 500m
- MOQ: 100m increments
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 5 kg
Key Features
- 3 pair cores for multiple data channels
- 0.22mm conductor size with 7 strands of 0.20mm wire
- Grey PVC insulation for durability and protection
- Available in 500m drum length
- Minimum order quantity of 100m increments
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure compliance with electrical standards and safety.
Applications
- Data transmission in communication systems
- Instrumentation and control wiring
- Industrial and commercial data cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation is recyclable and designed for long service life reducing waste
- Efficient data transmission reduces energy loss in communication systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Data Cable 3 Pair 0.22 7/020 is available now for immediate purchase. Ideal for data and instrumentation cabling in industrial and commercial applications.
