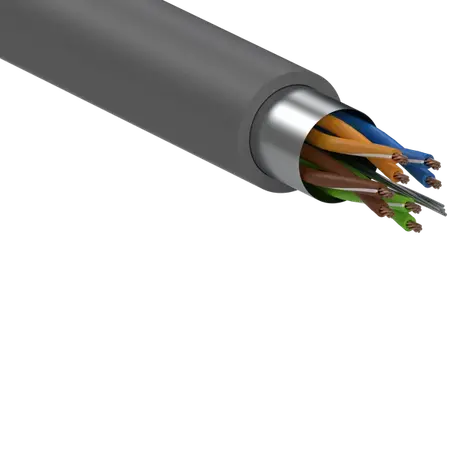

Data Cable 4 Pair 0.22mm 7/020 Special LSZH Grey Drum of 500m Eltech
Eltech Data Cable 4 Pair 0.22mm 7/020 Special LSZH in Grey. Drum of 500m. Ideal for data and communications installations.
Sign in
Please login to continue to your account.
- Conductor Size: 0.22mm diameter
- Stranding: 7 strands of 0.20mm wire
- Number of Pairs: 4
- Outer Sheath Colour: Grey
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters increments
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 5 kg
- 4 pair conductor configuration for reliable data transmission
- Conductor size 0.22mm with 7 strands of 0.20mm wire
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Grey outer sheath for easy identification
- Installation should be performed by a qualified electrician or technician to ensure compliance with safety and performance standards.
- Data transmission in industrial and commercial environments
- Instrumentation and control systems
- Telecommunications and networking installations
- Complies with AS/NZS 5000 series for electrical cables and wiring
- Meets AS/NZS 3808 for low smoke zero halogen cables
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire
- Environmentally safer material choice for indoor installations
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
The Eltech Data Cable 4 Pair 0.22mm 7/020 Grey Special LSZH is available now for immediate purchase. Ideal for data and instrumentation cable applications in commercial and industrial settings.
Q: What applications is the Eltech Data Cable 4P LSZH Grey suited for?
A: This cable is suited to data transmission in industrial and commercial environments, instrumentation and control systems, and telecommunications and networking installations. The 4-pair configuration provides additional circuit capacity for more complex signal routing within a single cable run, while the LSZH jacket makes it appropriate for fire-sensitive or enclosed spaces.
Q: How is this cable ordered and what drum lengths are available?
A: The Eltech ELT7204P-ALT is available in 500m drums and sold in minimum order quantities of 100m increments, giving you the flexibility to order the length required for the job without committing to a full drum.
For installations requiring fewer pairs in the same LSZH jacket, the data cable 2P LSZH grey is available with the same conductor size and ordering structure.
Where a higher pair count is needed across the same LSZH format, the data cable 6P LSZH grey covers the same drum length and 100m minimum order.
If your layout requires a smaller channel count while retaining low-smoke performance, you can implement a standard 1-pair LSZH data cable.
