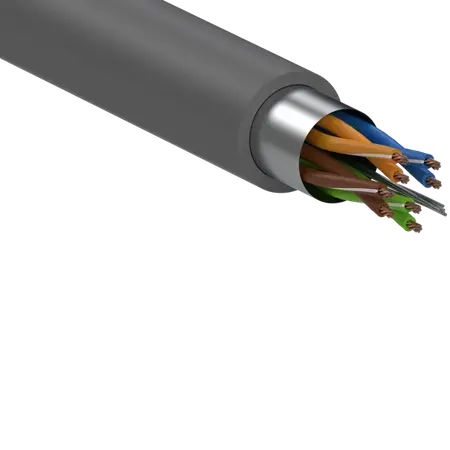

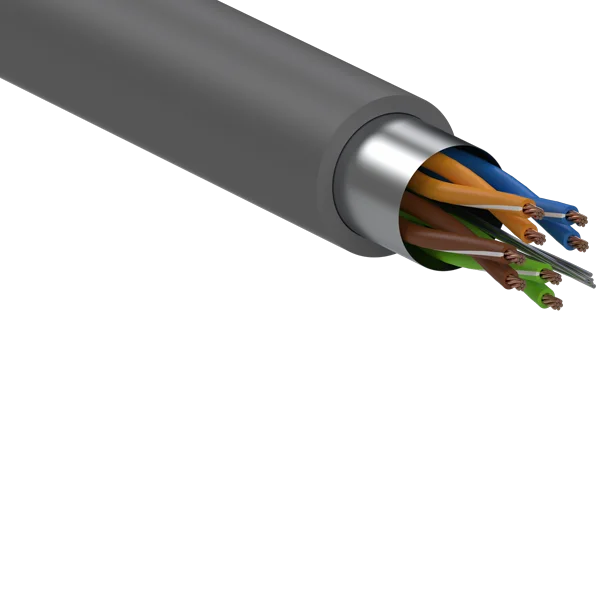

Data Cable 4 Pair 0.22mm | LSZH Jacket | Grey Sheath | 500m Length | Per 100m by Eltech
Data cable with 4 pair conductor configuration and 0.22mm diameter—ideal for data transmission in industrial and commercial environments. Built for reliable performance, with a low smoke zero halogen (LSZH) jacket for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Data Cable 4 Pair 0.22mm 7/020 – Grey – Special – LSZH
Brand: Eltech
SKU: ELT7204P-ALT
Alternatively Known As: 4 Pair Data Cable LSZH, 4 Pair Instrumentation Cable, Low Smoke Zero Halogen Data Cable
Technical Specifications
- Conductor Size: 0.22mm diameter
- Stranding: 7 strands of 0.20mm wire
- Number of Pairs: 4
- Outer Sheath Colour: Grey
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters increments
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 5 kg
Key Features
- 4 pair conductor configuration for reliable data transmission
- Conductor size 0.22mm with 7 strands of 0.20mm wire
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Grey outer sheath for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure compliance with safety and performance standards.
Applications
- Data transmission in industrial and commercial environments
- Instrumentation and control systems
- Telecommunications and networking installations
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
- Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire
- Environmentally safer material choice for indoor installations
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Data Cable 4 Pair 0.22mm 7/020 Grey Special LSZH is available now for immediate purchase. Ideal for data and instrumentation cable applications in commercial and industrial settings.
