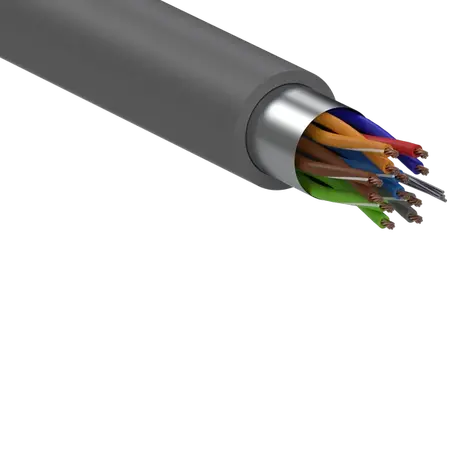

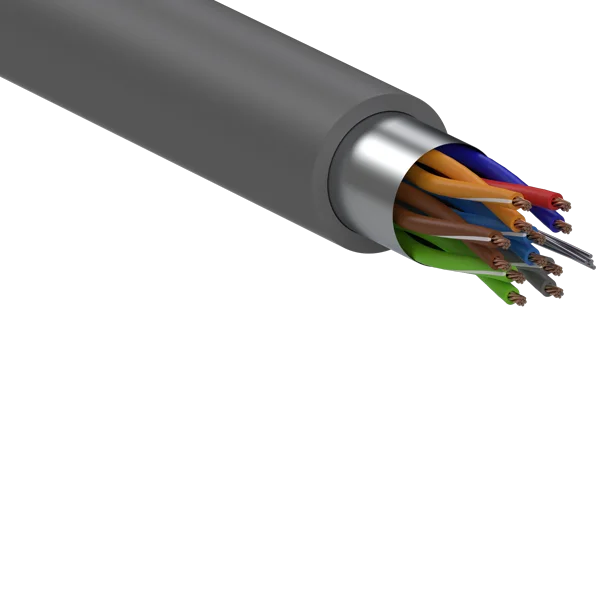

Data Cable 6 Pair 0.22mm | LSZH Jacket | Grey Outer Sheath | 500m Length | Per 100m by Eltech
Data cable with 6 pair configuration and 0.22mm conductor size—ideal for data transmission in industrial and commercial environments. Built for telecommunications and networking installations, featuring a low smoke zero halogen (LSZH) jacket for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Data Cable 6 Pair 0.22mm 7/020 – Grey – Special – LSZH
Brand: Eltech
SKU: ELT7206P-ALT
Alternatively Known As: 6 Pair Data Cable LSZH, 0.22mm Data Cable, Instrumentation Cable Grey, Low Smoke Zero Halogen Data Cable
Technical Specifications
- Conductor Size: 0.22mm diameter, 7 strands of 0.20mm wire
- Number of Pairs: 6
- Outer Colour: Grey
- Drum Length: 500 meters
- Minimum Order Quantity: 100 meters increments
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 3.5 kg
Key Features
- 6 pair conductor configuration for multiple data channels
- Conductor size of 0.22mm with 7 strands of 0.20mm wire
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Grey outer sheath for easy identification
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical standards and safety regulations.
Applications
- Data transmission in industrial and commercial environments
- Instrumentation and control systems
- Telecommunications and networking installations
Standards & Compliance
- Complies with AS/NZS 5000 series for electrical cables and wiring
- Meets AS/NZS 3808 for low smoke zero halogen cables
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire
- Improves safety for occupants and reduces environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Eltech Data Cable 6 Pair 0.22mm 7/020 Grey Special LSZH is available for immediate purchase, ideal for data and instrumentation cable installations in commercial and industrial settings.
