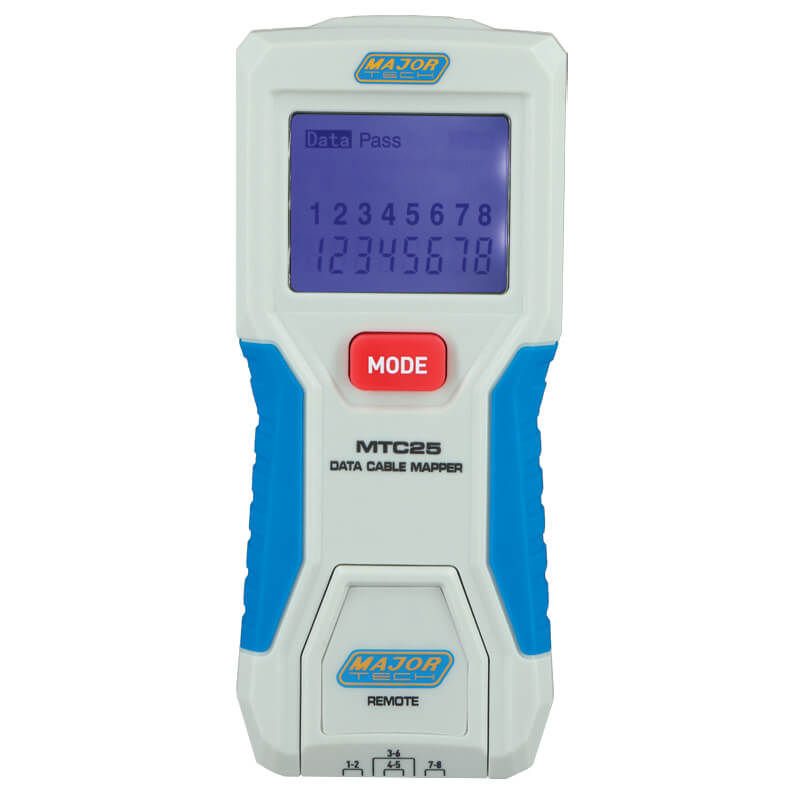

Data Cable Mapper | 305m Range | Fault Detection & Tone Generator | RJ45 by Majortech
Data cable mapper with a 305m range and quick test function—ideal for network technicians and installers. It effectively maps RJ45 connections, identifies faults like Open and Short, and features a built-in tone generator for efficient cable tracing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Data Cable Mapper | 305m Range | Fault Detection & Tone Generator | RJ45 by Majortech
Brand: Majortech
SKU: MTC25
Alternatively Known As: Data Cable Tester, RJ45 Cable Mapper, Network Cable Tester, Cable Fault Locator
Technical Specifications
- Maximum Cable Length Range: 305m
- Minimum Cable Length for Split Pairs: 0.5m
- Maximum Cable Resistance: 100Ω maximum DC
- Maximum Voltage Between Any Two Pins Without Damage: 60V DC or 55V AC
- Dimensions: 127 x 55 x 28 mm
- Weight: 141g
- Dimensions (H x L x W): 28mm x 127mm x 55mm
- Weight: 0.141 kg
Key Features
- Maps out connections and verifies wiring on RJ45 cables
- Displays faults including Open, Short, Miswire, and Split pair
- Quick test function for fast fault identification
- Built-in tone generator with three tone levels (Lo, Hi1, Hi2)
- Compatible with optional MTC40 tone probe for cable tracing
Professional Installation Requirements
- No professional installation required; designed for use by network technicians and installers.
Applications
- Mapping and verifying RJ45 terminated data cable connections
- Identifying wiring faults such as Open, Short, Miswire, and Split pair
- Tracing and locating cables in wiring closets and patch panels
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying faults before replacement
- Supports efficient network maintenance reducing unnecessary resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech for specific warranty details.
Available Now
The Majortech MTC25 Data Cable Mapper is available now for immediate purchase. Ideal for network installation, maintenance, and troubleshooting in commercial and industrial environments.
