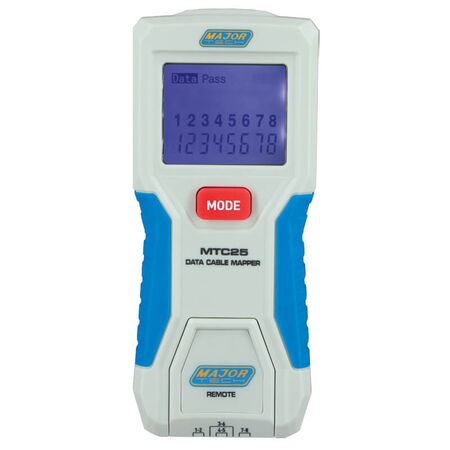

Data Cable Mapper 305m Range Fault Detection & Tone Majortech
Data cable mapper with a 305m range and quick test function—ideal for network technicians and installers. It effectively maps RJ45 connections, identifies faults lik
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Maximum Cable Length Range: 305m
- Minimum Cable Length for Split Pairs: 0.5m
- Maximum Cable Resistance: 100Ω maximum DC
- Maximum Voltage Between Any Two Pins Without Damage: 60V DC or 55V AC
- Weight: 141g
- Dimensions (H x L x W): 28mm x 127mm x 55mm
- Weight: 0.141 kg
Key Features
- Maps out connections and verifies wiring on RJ45 cables
- Displays faults including Open, Short, Miswire, and Split pair
- Quick test function for fast fault identification
- Built-in tone generator with three tone levels (Lo, Hi1, Hi2)
- Compatible with optional MTC40 tone probe for cable tracing
Professional Installation Requirements
- No professional installation required; designed for use by network technicians and installers.
Applications
- Mapping and verifying RJ45 terminated data cable connections
- Identifying wiring faults such as Open, Short, Miswire, and Split pair
- Tracing and locating cables in wiring closets and patch panels
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying faults before replacement
- Supports efficient network maintenance reducing unnecessary resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech for specific warranty details.
Available Now
The Majortech MTC25 Data Cable Mapper is available now for immediate purchase. Ideal for network installation, maintenance, and troubleshooting in commercial and industrial environments.
FAQ
Q: What faults can the Majortech MTC25 detect on RJ45 data cables?
A: The MTC25 displays faults including Open, Short, Miswire, and Split pair on RJ45 terminated data cable connections. It also supports cable tracing in wiring closets and patch panels when used with the optional MTC40 tone probe.
Q: Does the Majortech MTC25 require professional installation?
A: No professional installation is required — the MTC25 is designed for direct use by network technicians and installers. It supports quick test function for fast fault identification and a built-in tone generator with three tone levels (Lo, Hi1, Hi2).
A Cat 6 patch lead is a practical companion for testing and verifying patched connections when using the MTC25 in wiring closets or patch panel environments.
For structured cabling installations being tested with the MTC25, a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A provides a suitable termination point.
A Cat5e coupler RJ45 F-F with gold plated contacts can be used to extend cable runs during fault tracing with the MTC25.
