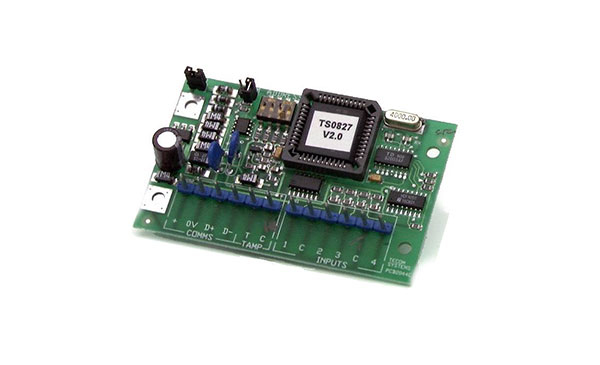

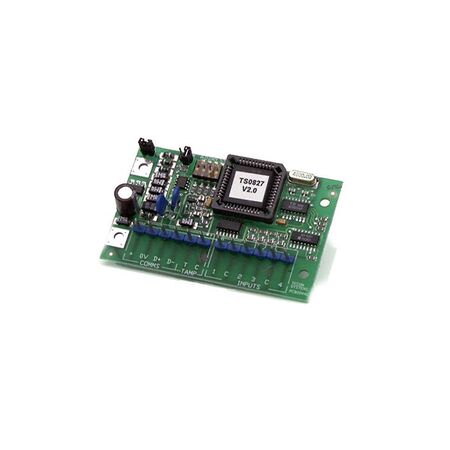

Data Gathering Panel DGP 4 Input Board Only Tecom

BRAND: Ness
SKU: 120-403
$323.50 List price: $431.30
+ −
30 Days Return Electricians Unlock Trade Access
Tecom data gathering panel features 4 inputs and is supplied as a board only. Ideal for expanding Challenger alarm systems.

Alternatively Known As: Tecom 4-Input DGP, Challenger 4-Zone Input Expander, TS0827 Challenger DGP

Technical Specifications
  • Model: TS0827
  • Input Capacity: 4 zone inputs
  • Supply Voltage: 13.8 VDC
  • Current Consumption: 45 mA
  • Communication: Challenger LAN via RS-485 data bus
  • Maximum DGPs per Challenger Panel: 15
  • Maximum Distance from Control Panel: 1,500 m
  • Siren Output: None
  • Maximum Outputs: 0
  • Data Bus Monitoring: Yes
  • Tamper Input: Yes
  • Operating Temperature: 0°C to 50°C
  • Humidity: 95% non-condensing
  • PCB Format: Size B
  • Enclosure: Not included
  • Regulatory Marking: ACMA C-Tick for Australia and New Zealand
  • Dimensions (H x L x W): 15mm x 80mm x 52mm
  • Weight: 0.1 kg
Key Features
  • Provides four additional monitored inputs for compatible Challenger alarm systems
  • Board-only design for installation in a compatible Challenger metal housing
  • Powered directly from the Challenger LAN
  • Includes a tamper input for enclosure monitoring
  • Supports online polling and data bus monitoring
  • Retains the last alarm state if communication with the control panel fails
  • No integrated power supply, siren output or additional output expansion
  • Suitable for remote input wiring termination to reduce cable runs
Professional Installation Requirements
  • Installation, addressing and commissioning should be performed by a suitably qualified security alarm technician familiar with Tecom Challenger systems. Install and configure the board in accordance with the manufacturer's documentation and applicable alarm-system requirements.
Applications
  • Expanding input capacity on Tecom Challenger V8 alarm systems
  • Connecting remote alarm detection devices to a Challenger control panel
  • Terminating monitored alarm wiring away from the main control panel
  • Commercial and institutional intrusion alarm installations
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable to the design, installation, commissioning and maintenance of intruder alarm systems
  • ACMA C-Tick regulatory marking specified by the manufacturer for Australia and New Zealand
Environmental Benefits
  • Low operating current of 45 mA helps minimise system energy consumption
  • Board-only format reduces enclosure and packaging material where a compatible housing is already available
  • Long service life in an installed security system can reduce electronic replacement waste
Warranty Information

Tecom Challenger hardware is covered by a 5-year warranty through the current Australian distributor warranty listing. Warranty terms may vary by seller and purchase channel; Australian Consumer Law rights continue to apply.

Available Now

Available through Tecom/Aritech and authorised Australian security-system distributors, subject to current supply of this legacy Challenger V8 accessory.
