DAXLAN-0070BA080000W01 | Linear encoders

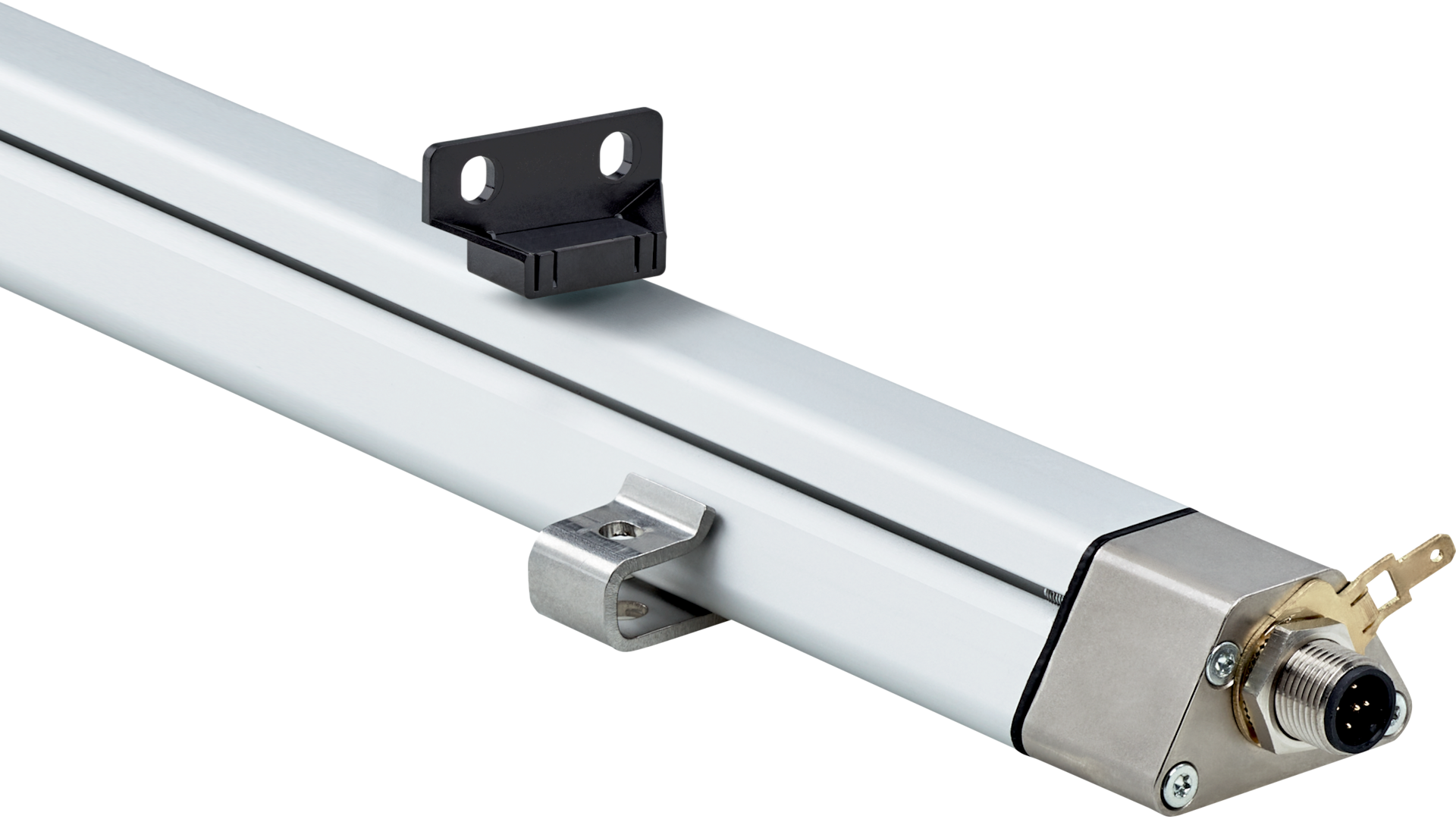

The SICK DAXLAN-0070BA080000W01 linear encoder offers precise position measurement with high repeatability and robust design, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLAN-0070BA080000W01 | Linear encoders
Brand: SICK
SKU: 1133843
Alternatively Known As: Linear position sensor, linear measurement encoder, analog linear encoder, position feedback sensor
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 70 mm
- Output signal: 4 mA to 20 mA analog current
- Number of signals: Two output signals (one normal, one inverted)
- Load resistance: 100 Ω to 500 Ω
- Connection: Male connector, M12, 8-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to −30 V DC
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- Operating temperature: –40 °C to +85 °C
- Storage temperature: –40 °C to +85 °C
- Relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10 to 2000 Hz
- Enclosure rating: IP65 / IP67
- Dimensions (H x L x W): 20mm x 100mm x 80mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 70 mm
- Analog current output signal 4 mA to 20 mA
- Two output signals with rising and falling sequences
- Robust mechanical design with anodised aluminum housing
- Operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Position measurement in industrial automation
- Precision linear positioning systems
- Machine tool feedback systems
- Robotics and assembly line automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXLAN-0070BA080000W01 linear encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
