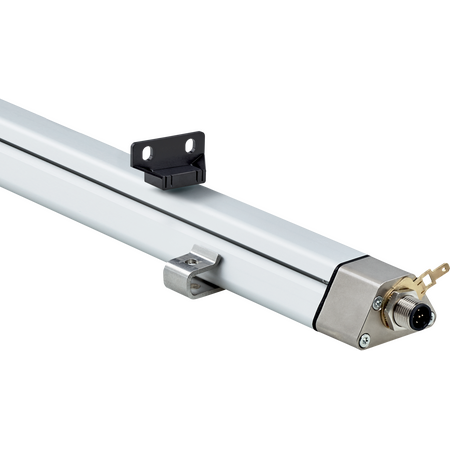

DAXLAN-0270BA080000D00 | Linear encoders

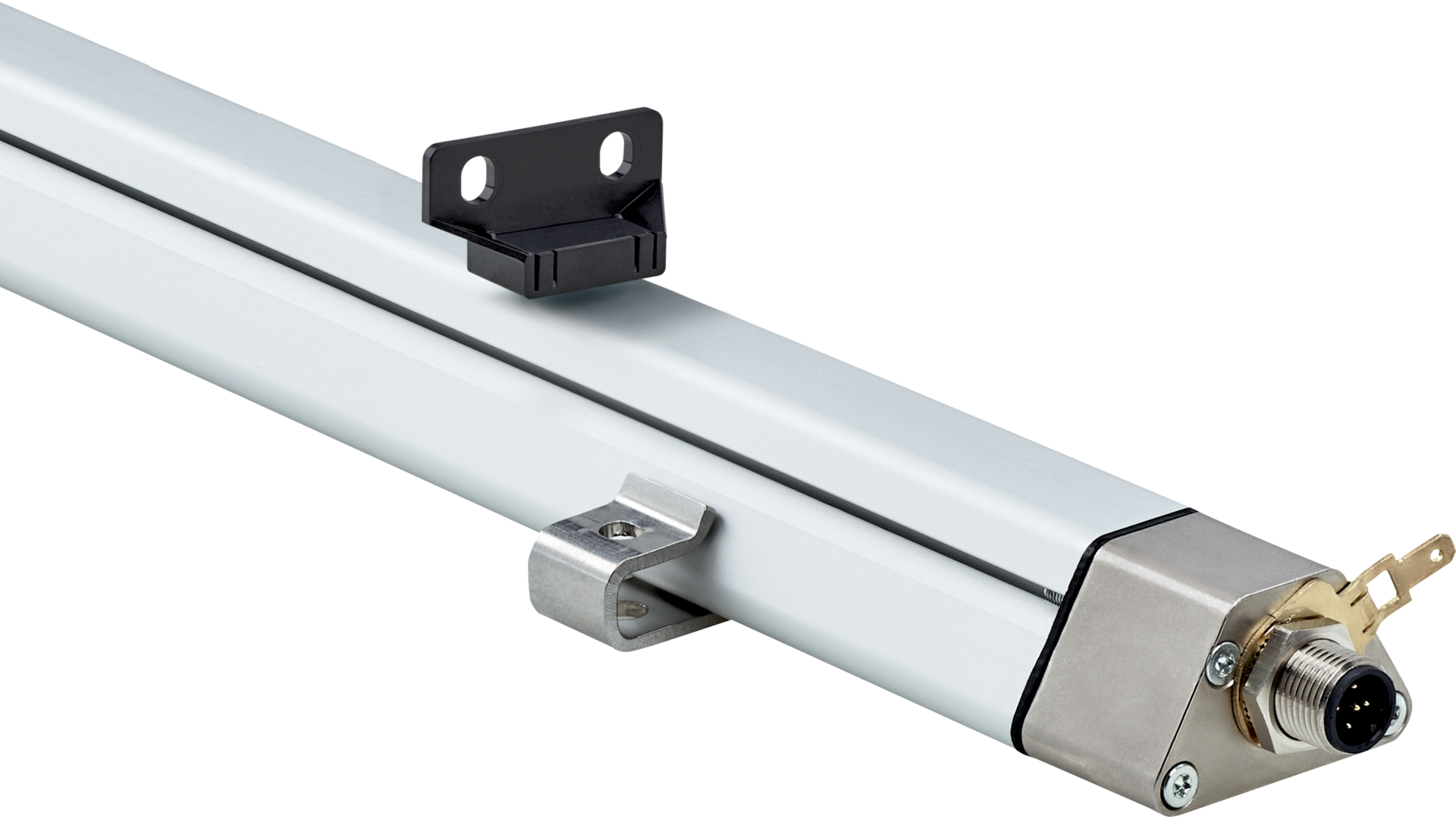

The SICK DAXLAN-0270BA080000D00 linear encoder offers precise position measurement with a 270 mm range, robust construction, and reliable analog output for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLAN-0270BA080000D00 | Linear encoders
Brand: SICK
SKU: 1140192
Alternatively Known As: Linear position sensor, linear displacement encoder, analog linear encoder, position transducer
Technical Specifications
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 270 mm
- Null zone: 55 mm
- Damping zone: 63 mm
- Output signal: 4 mA to 20 mA analog current
- Load resistance: 100 Ω to 500 Ω
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10 to 2000 Hz
- Dimensions (H x L x W): 15mm x 300mm x 30mm
- Weight: 0.3 kg
Key Features
- High linearity with ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 270 mm
- Analog current output signal 4 mA to 20 mA
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient electronics
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXLAN-0270BA080000D00 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
