DAXLAN-0500BA080000W01 | Linear encoders

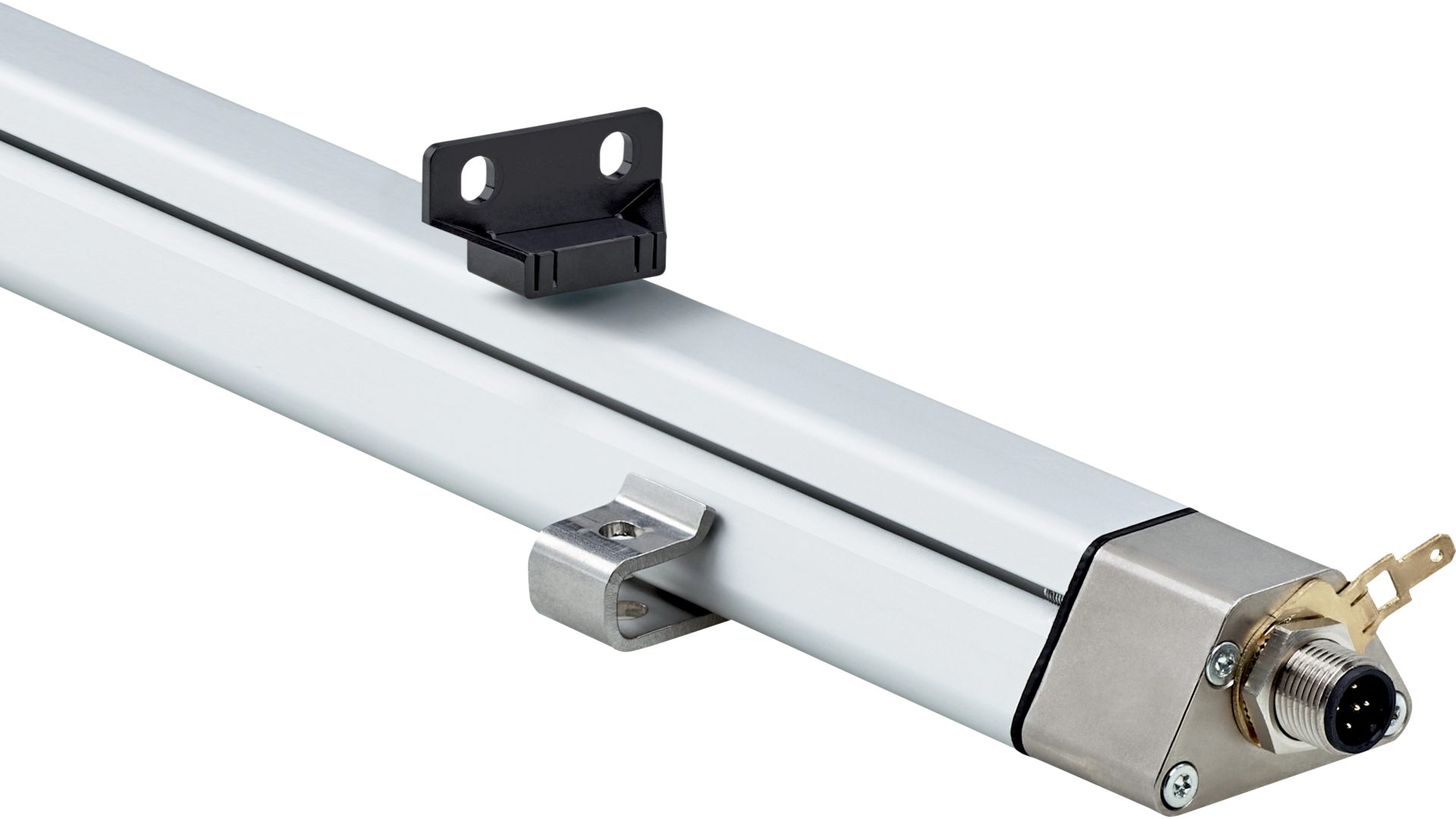

The SICK DAXLAN-0500BA080000W01 linear encoder offers precise position measurement with a 500 mm range, high repeatability, and robust design suitable for industrial automation and machine tool applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLAN-0500BA080000W01 | Linear encoders
Brand: SICK
SKU: 1133516
Alternatively Known As: Linear position sensor, linear displacement encoder, analog linear encoder, position measuring system
Technical Specifications
- Mean time to dangerous failure (MTTFD): 123 years
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 500 mm
- Null zone: 55 mm
- Damping zone: 63 mm
- Magnet shape: Small block magnet, 1 piece
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog current output 4 mA to 20 mA
- Number of signals: Two output signals (one normal, one inverted)
- Load resistance: 100 Ω to 500 Ω
- Connection type: Male connector, M12, 8-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g / 10 to 2000 Hz
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 500 mm
- Analog current output signal 4 mA to 20 mA
- Two output signals with one inverted signal
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXLAN-0500BA080000W01 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
