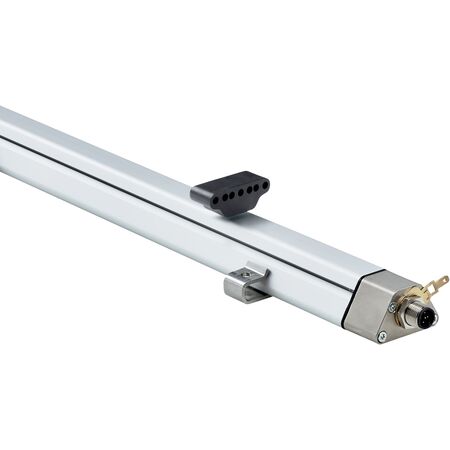

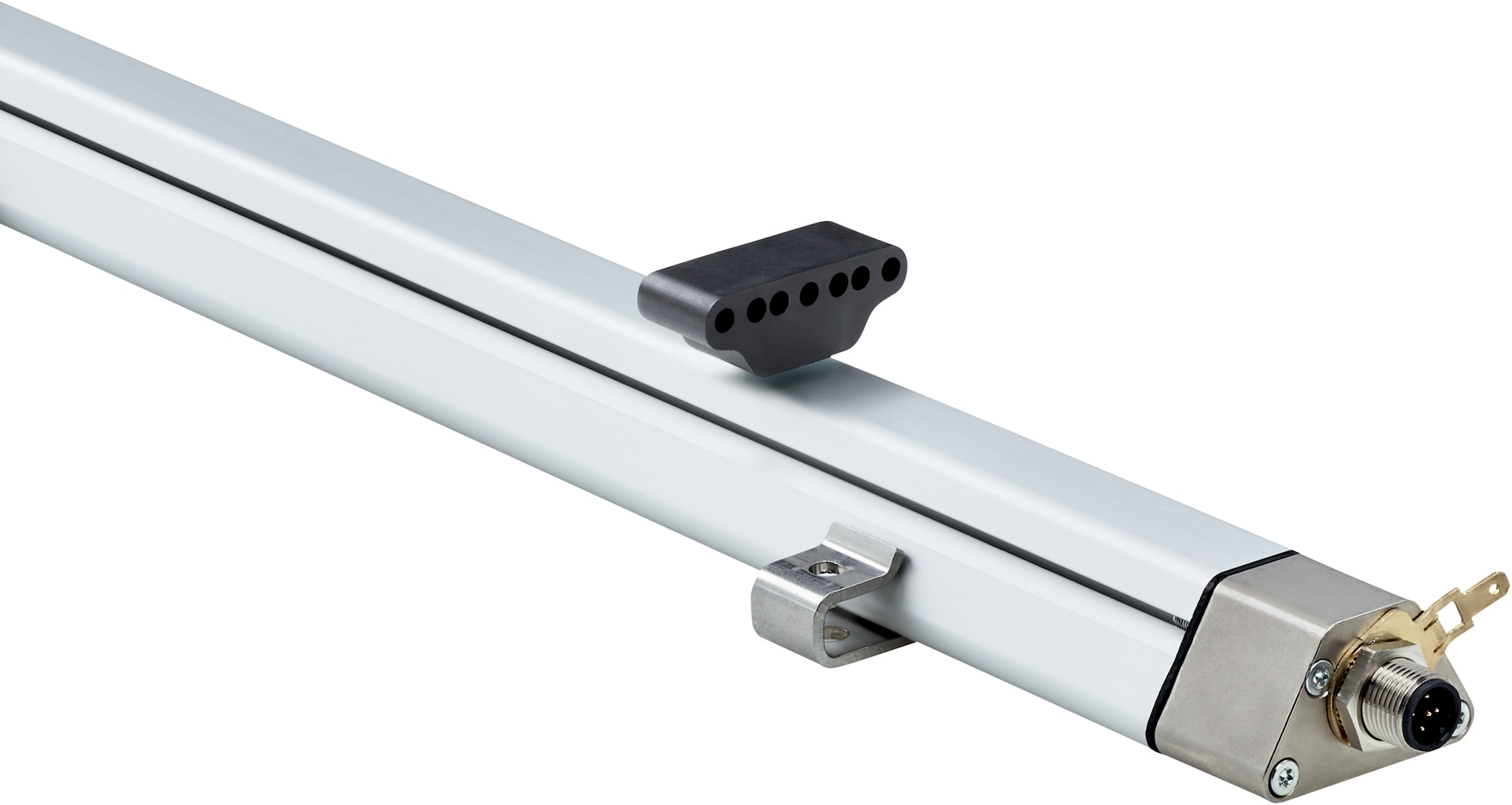

DAXLAN-0500BA480000D00 | Linear encoders
The SICK DAXLAN-0500BA480000D00 linear encoder offers precise position measurement with high repeatability and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLAN-0500BA480000D00 | Linear encoders
Brand: SICK
SKU: 1152816
Alternatively Known As: Linear position sensor, Analog linear encoder, Industrial linear position transducer
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 500 mm
- Output signal: 4 mA to 20 mA analog current
- Communication interface: Analog current
- Load resistance: 100 Ω to 500 Ω
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection type: Male connector, M12, 5-pin, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 8 g / 10 to 2000 Hz
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 500 mm
- Analog current output signal 4 mA to 20 mA
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Position measurement in industrial automation
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DAXLAN-0500BA480000D00 linear encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
