DAXLAN-1600BA080000D00 | Linear encoders

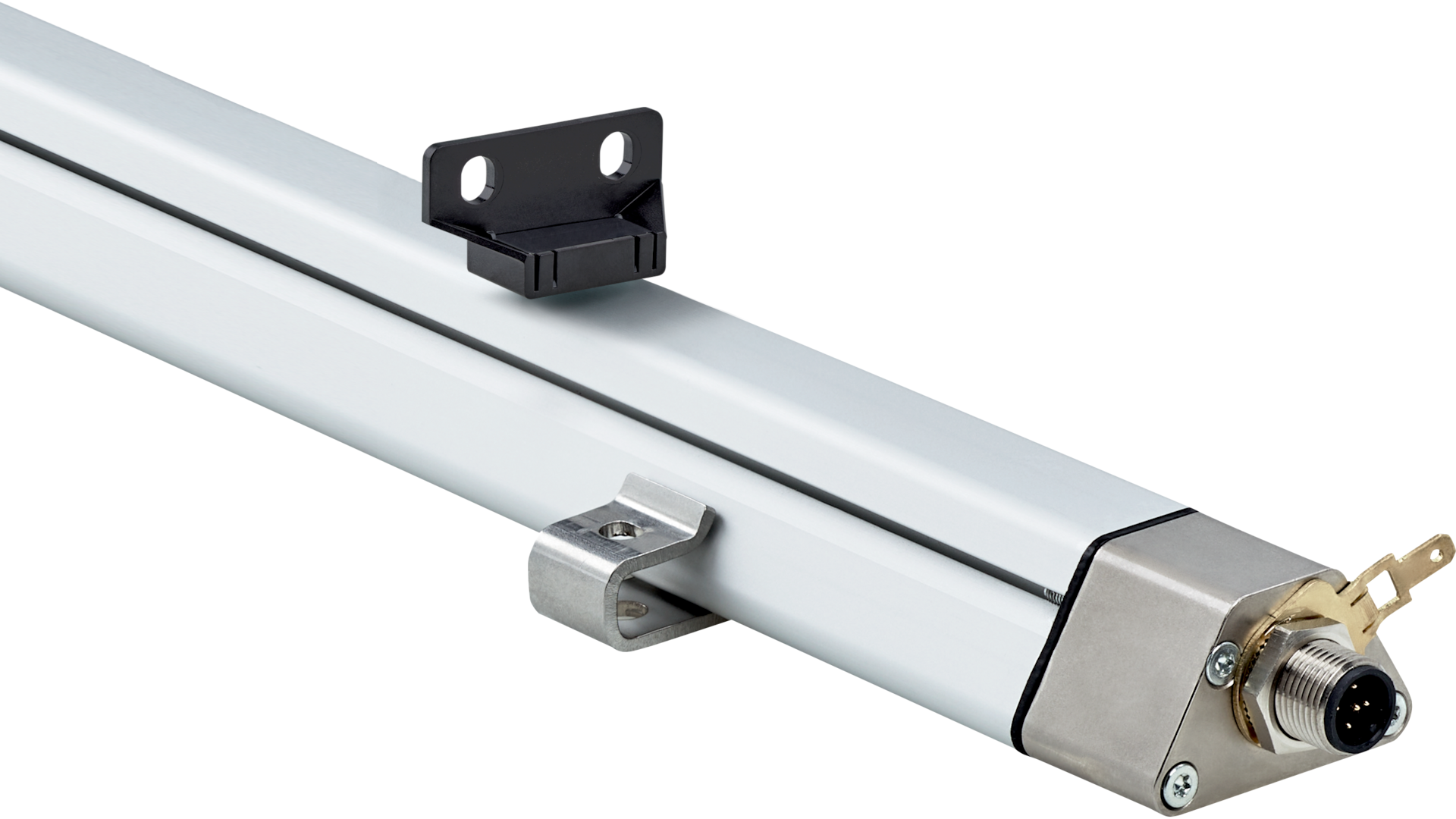

The SICK DAXLAN-1600BA080000D00 linear encoder offers precise position measurement with high repeatability and robust design, suitable for industrial automation and machine tool applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLAN-1600BA080000D00 | Linear encoders
Brand: SICK
SKU: 1140738
Alternatively Known As: Linear position sensor, linear measurement encoder, analog linear encoder, position transducer
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 1600 mm
- Null zone: 55 mm
- Damping zone: 63 mm
- Magnet shape: Small block magnet
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog current output (4 mA to 20 mA)
- Load resistance: 100 Ω to 500 Ω
- Connection type: Male connector, M12, 5-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to -30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 8 g / 10 to 2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 15mm x 1600mm x 30mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range up to 1600 mm
- Analog current output signal (4 mA to 20 mA)
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper mounting, wiring, and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient electronics
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXLAN-1600BA080000D00 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
